Gateron Phantom Switch Set
Silky Smooth And Satisfying
Looking for a new feel for your keyboard? Gateron has teamed up with Keychron to bring you an exclusive Phantom switch. These switches are engineered with ink material covers and a Pom stem to deliver a premium smooth and tactile typing experience. Available in red, blue, brown, and yellow, these custom switches will elevate any keyboard.
Pre-Lubed, Plus More Stability
Compared to conventional Gateron switches, these Gateron Phantom switches are lightly pre-lubed in the factory to offer less wobbliness while increasing the switch thickness for more stability.
Note: Phantom Blue Switch is unlubed.
Pre-Lubed, Plus More Stability
Compared to conventional Gateron switches, these Gateron Phantom switches are lightly pre-lubed in the factory to offer less wobbliness while increasing the switch thickness for more stability.
Note: Phantom Blue Switch is unlubed.
Phantom Light Effects
The Phantom switches have phantom light effects that allow the RGB backlight to showcase the switches' own case color. The red will make the backlights have more of a red lava effect, the blue will allow the backlights to have more of a mysterious blizzard-like effect, the brown will make the backlights coffee color, and the yellow will make the backlights shine like the sun.
High Compatibility 3-Pin Design
Same as the Gateron Pro switches, these Phantom switches also have a hollowed-out light position design to provide compatibility for SMD-LED and RGB-LED lights. They are fully compatible with most mechanical keyboards with MX-style keycaps.
High Compatibility 3-Pin Design
Same as the Gateron Pro switches, these Phantom switches also have a hollowed-out light position design to provide compatibility for SMD-LED and RGB-LED lights. They are fully compatible with most mechanical keyboards with MX-style keycaps.
Product Information

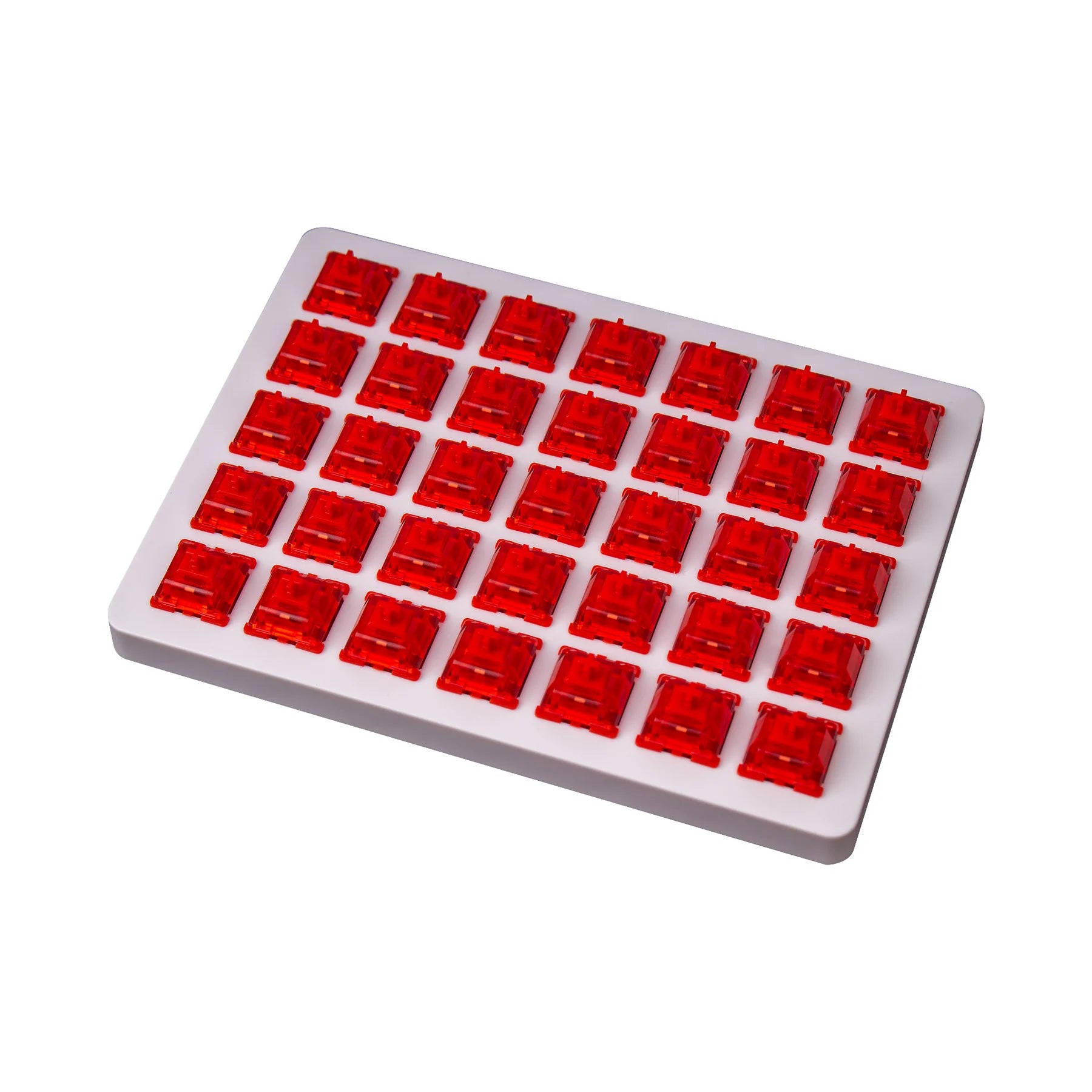

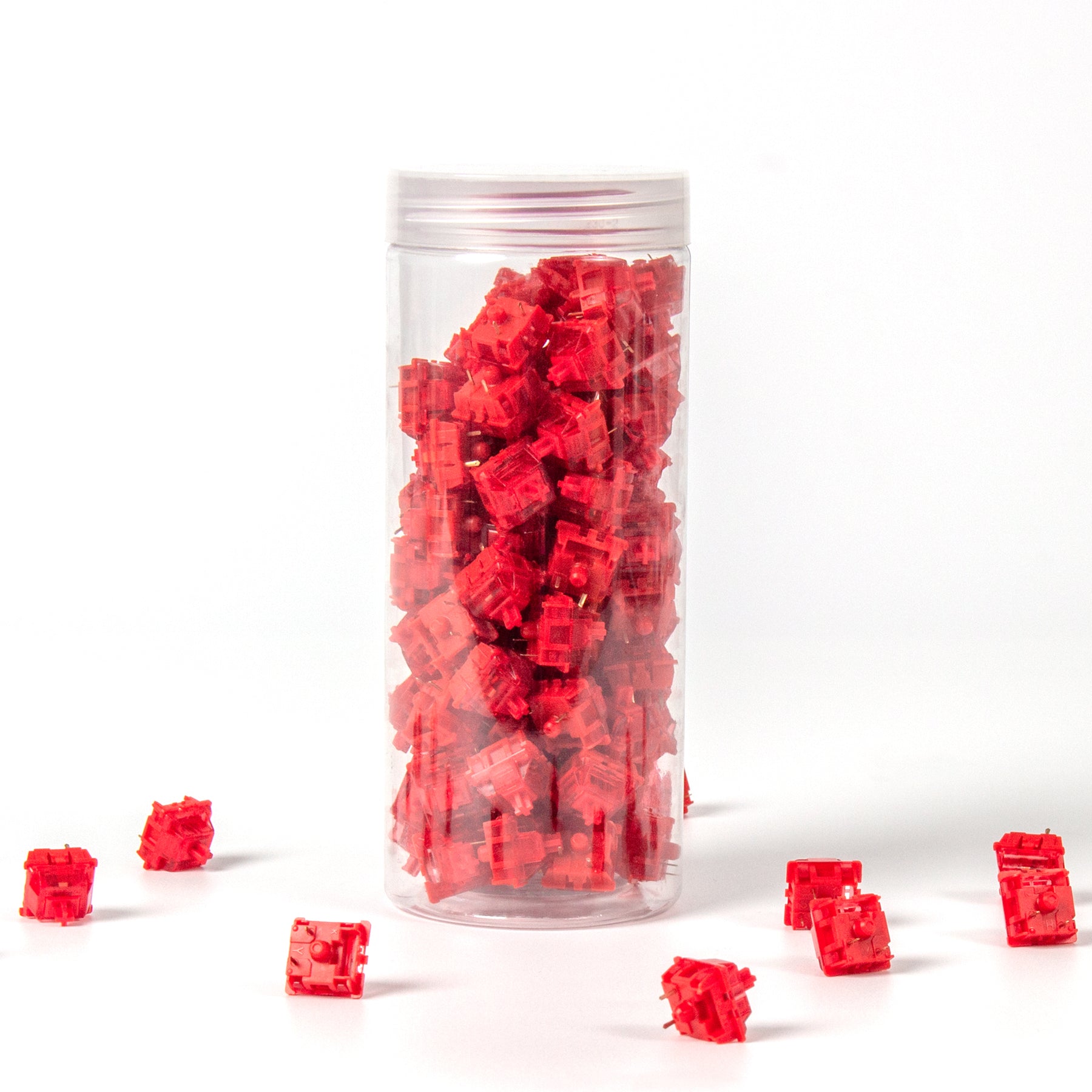

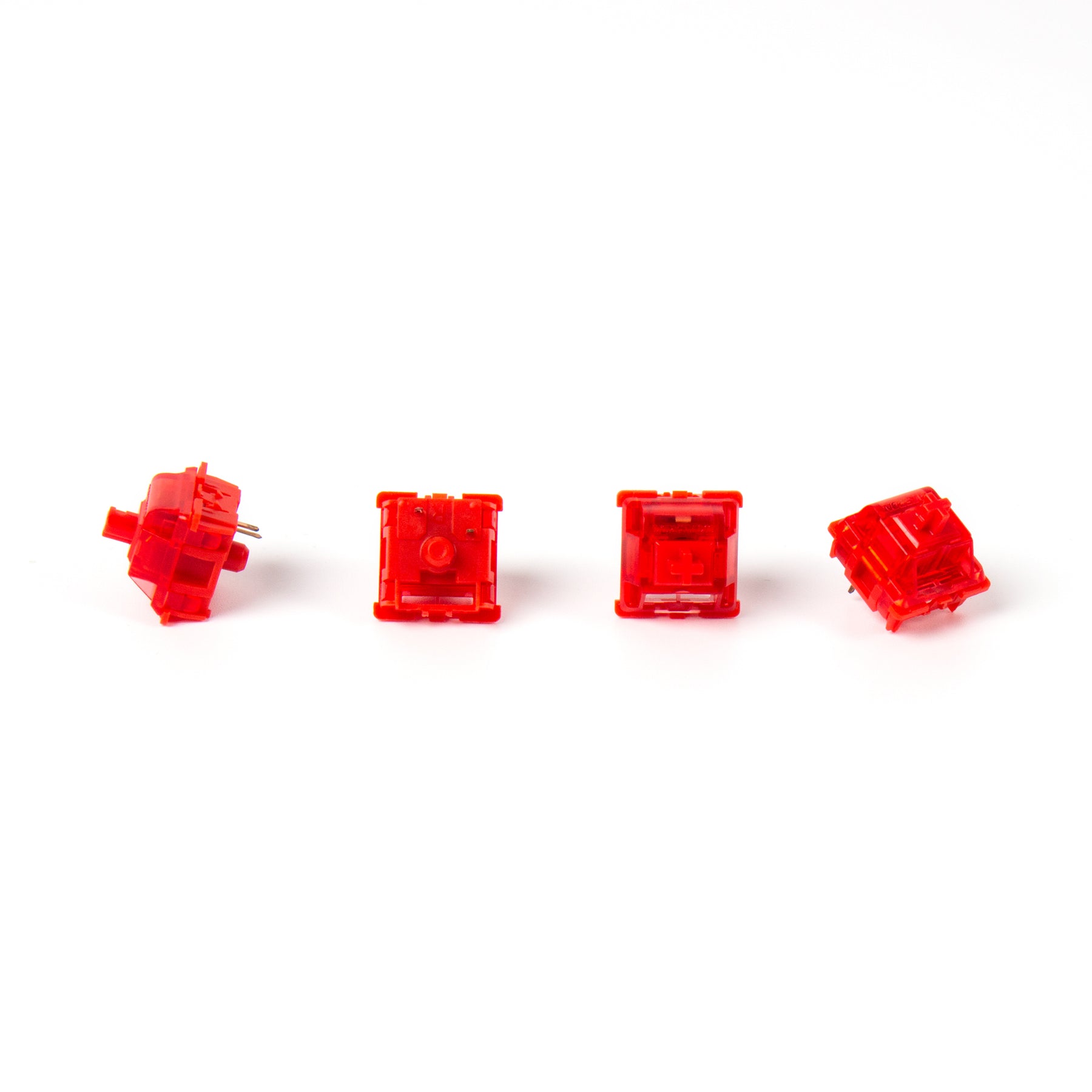

Phantom Red Switch
| Type | Linear |
|---|---|
| Operation Force | 45±15 gf |
| Pre-Travel | 2.0±0.6 mm |
| Total Travel | 4.0±0.6 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Vertical, light pressing force, soft rebound |

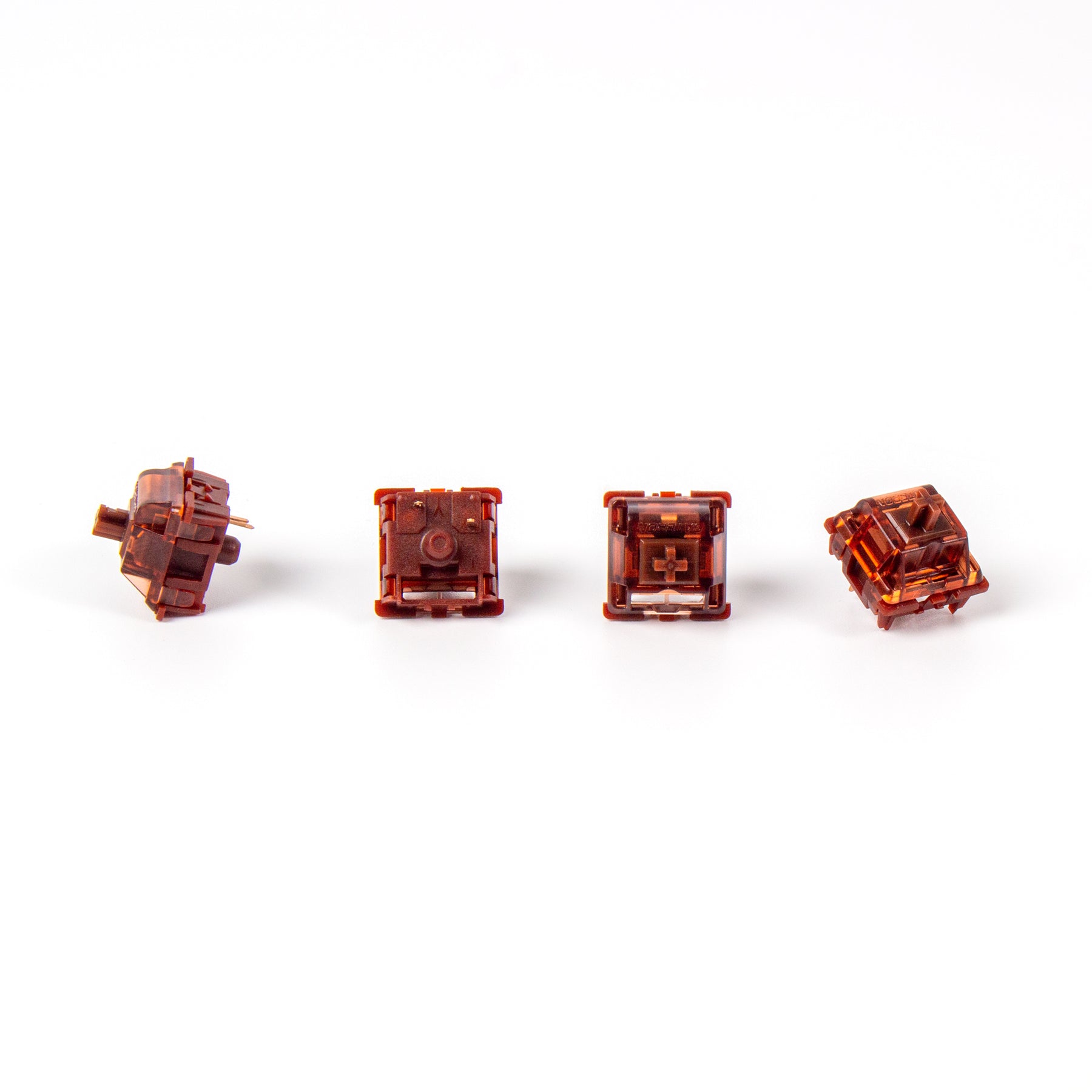

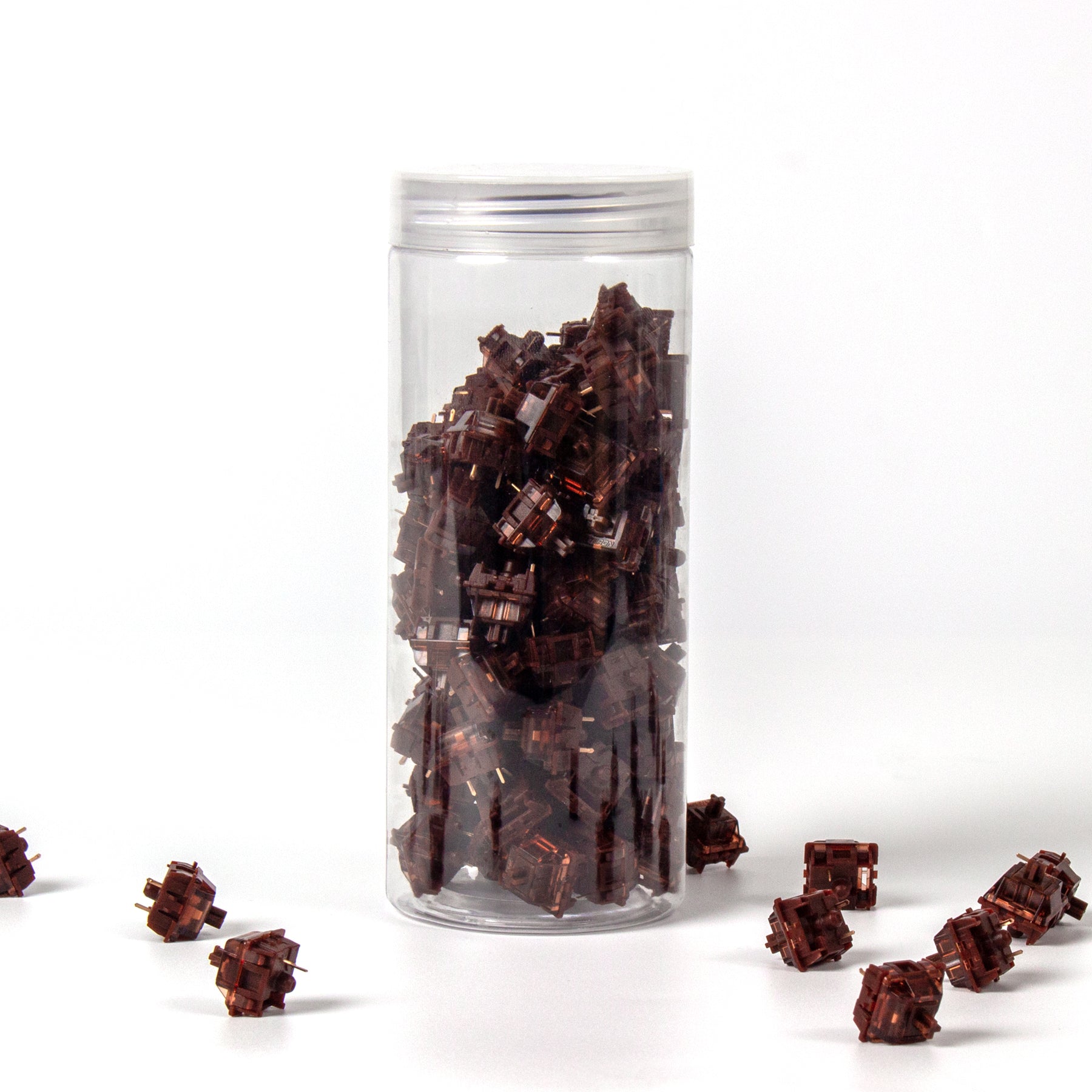

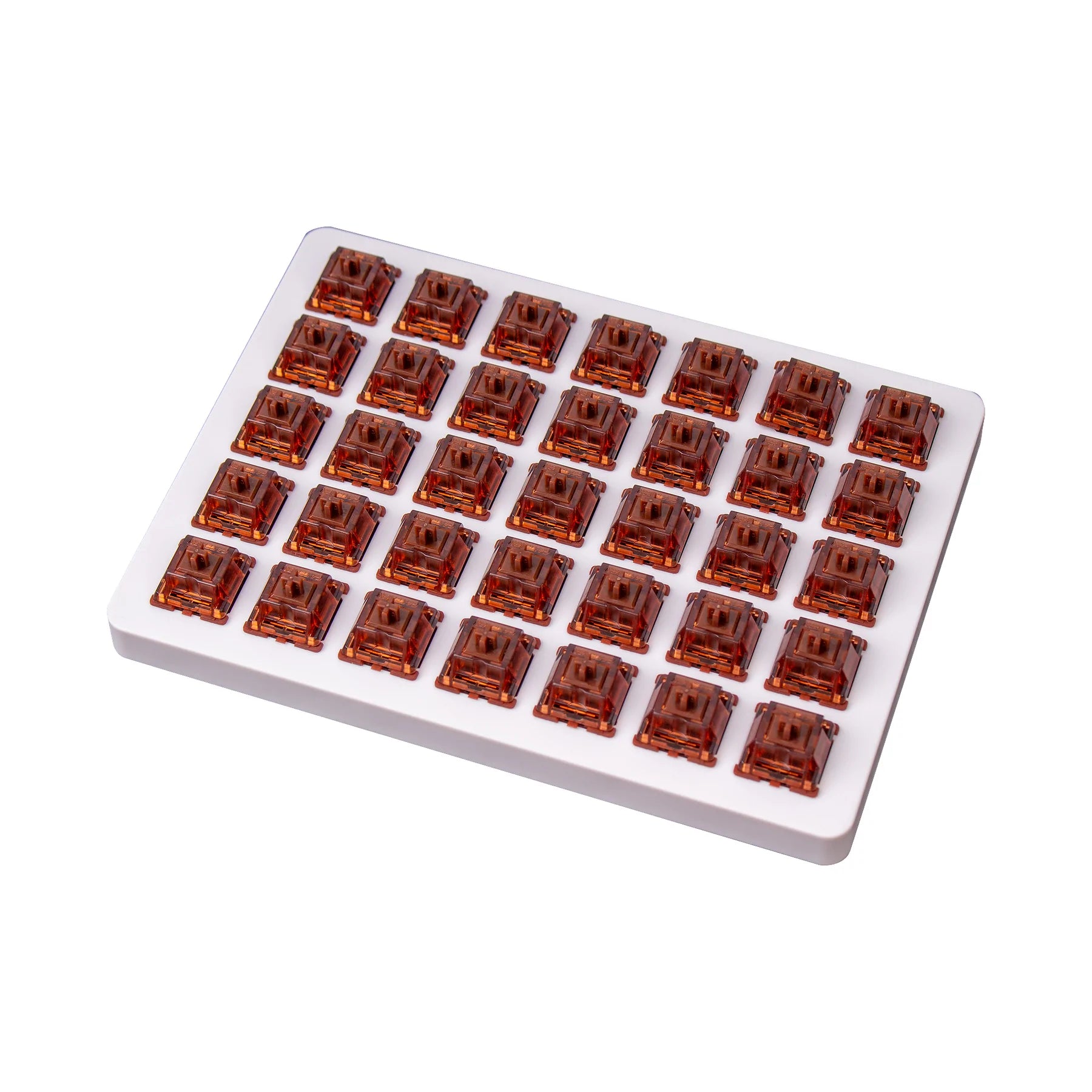

Phantom Brown Switch
| Type | Tactile |
|---|---|
| Operation Force | 55±15 gf |
| Pre-Travel | 2.0±0.6 mm |
| Total Travel | 4.0±0.6 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Bump, moderate pressing force, clear rebound |

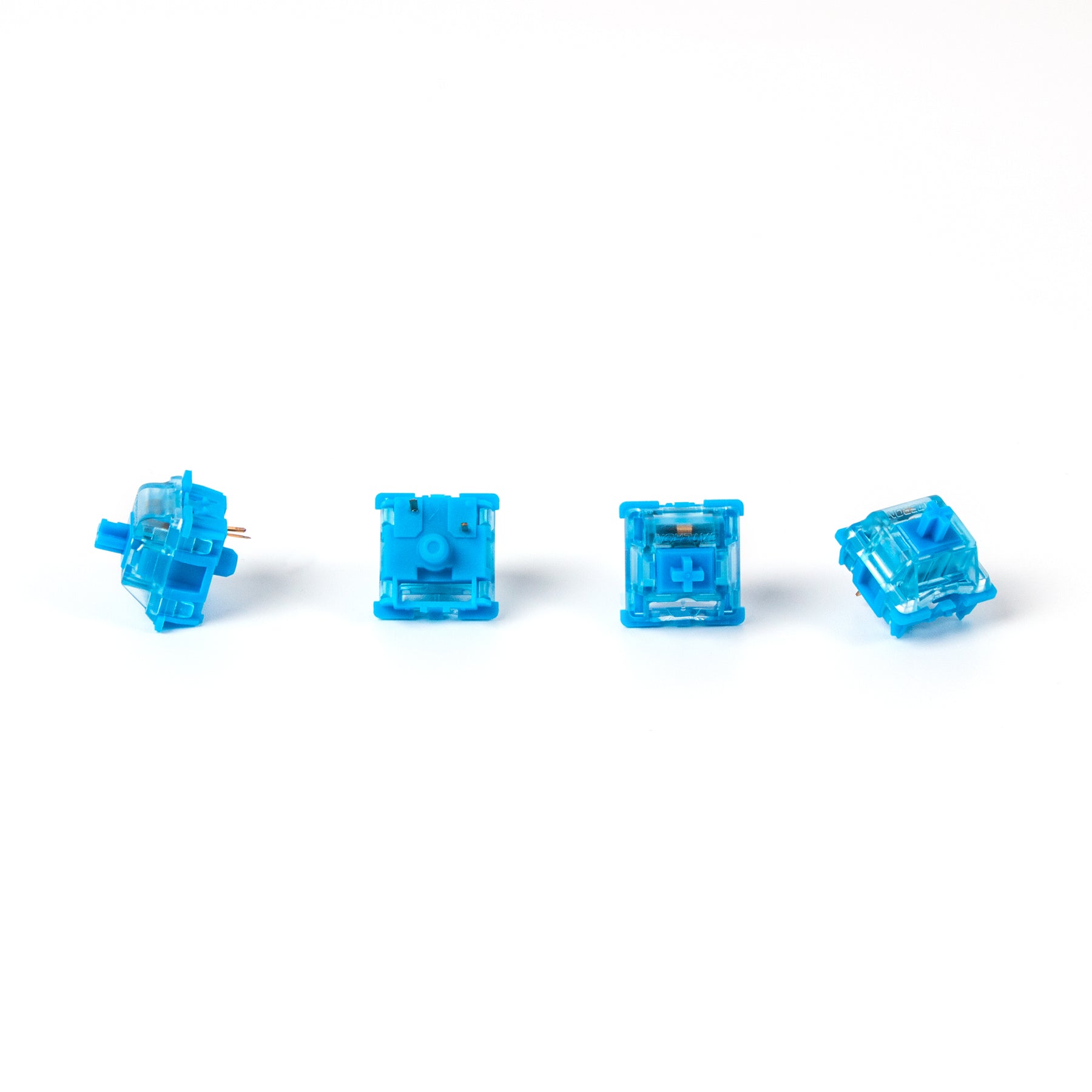

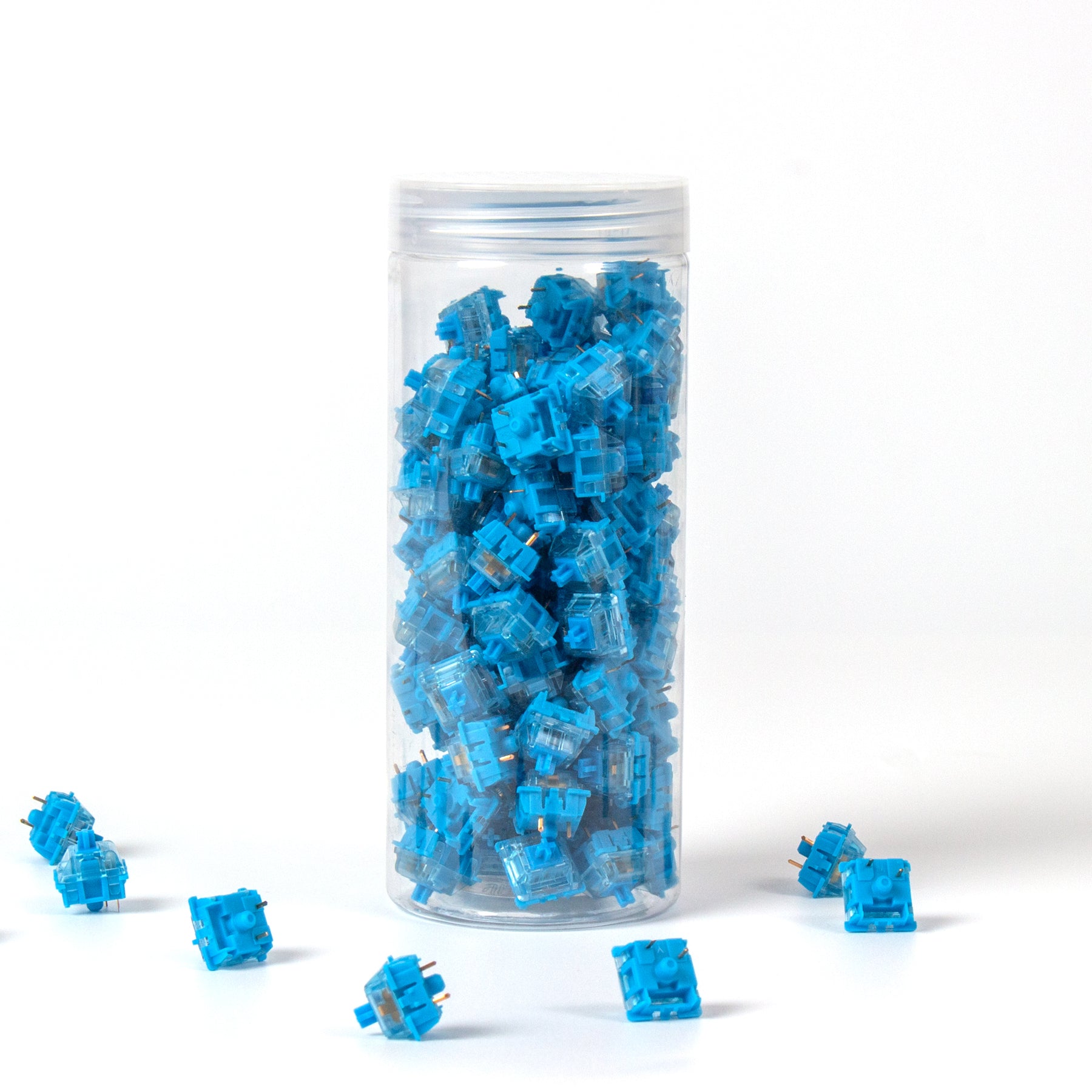

Phantom Blue Switch
| Type | Clicky |
|---|---|
| Operation Force | 60±15 gf |
| Pre-Travel | 2.3±0.6 mm |
| Total Travel | 4.0±0.6 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Clicky, moderate pressing force, clear rebound |

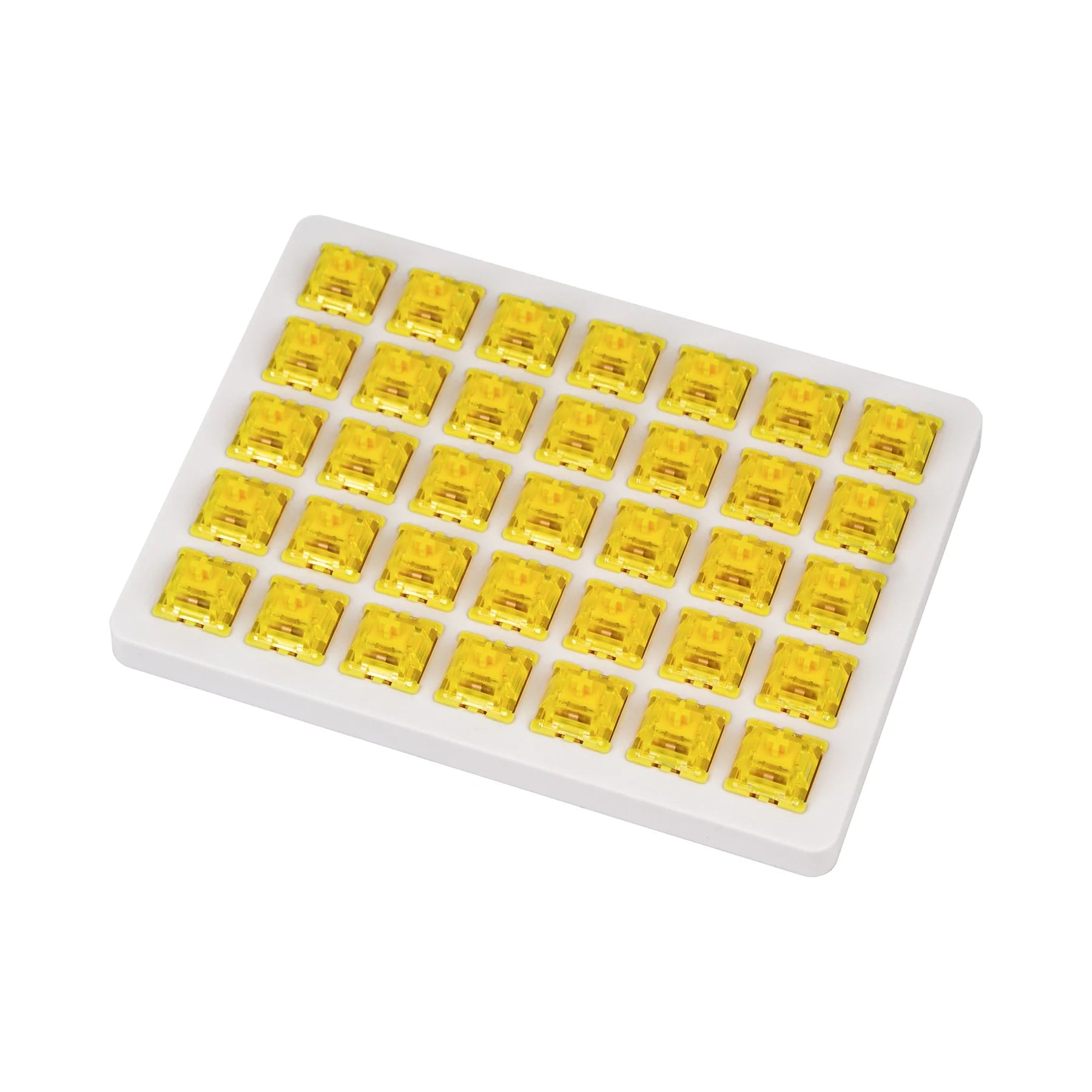

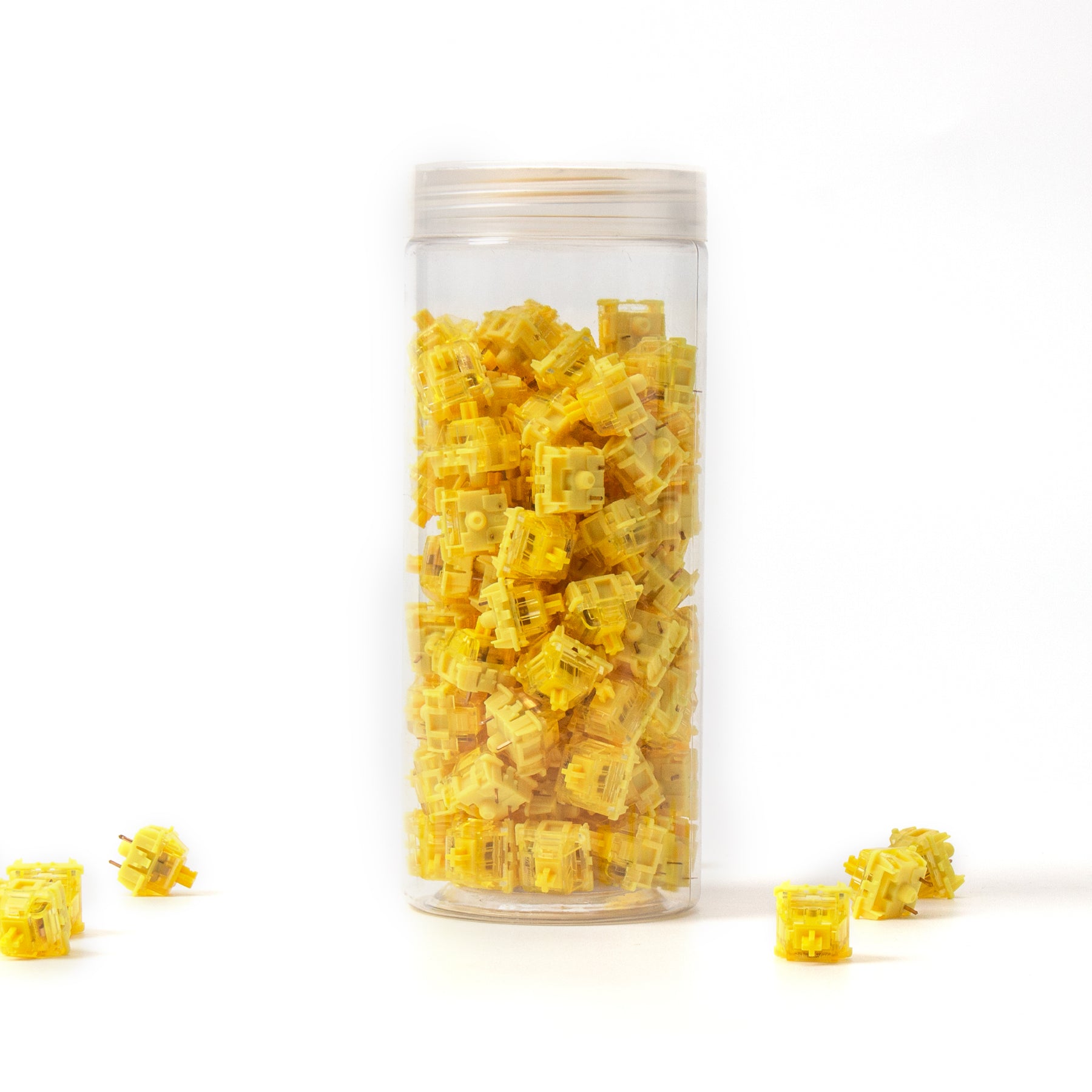

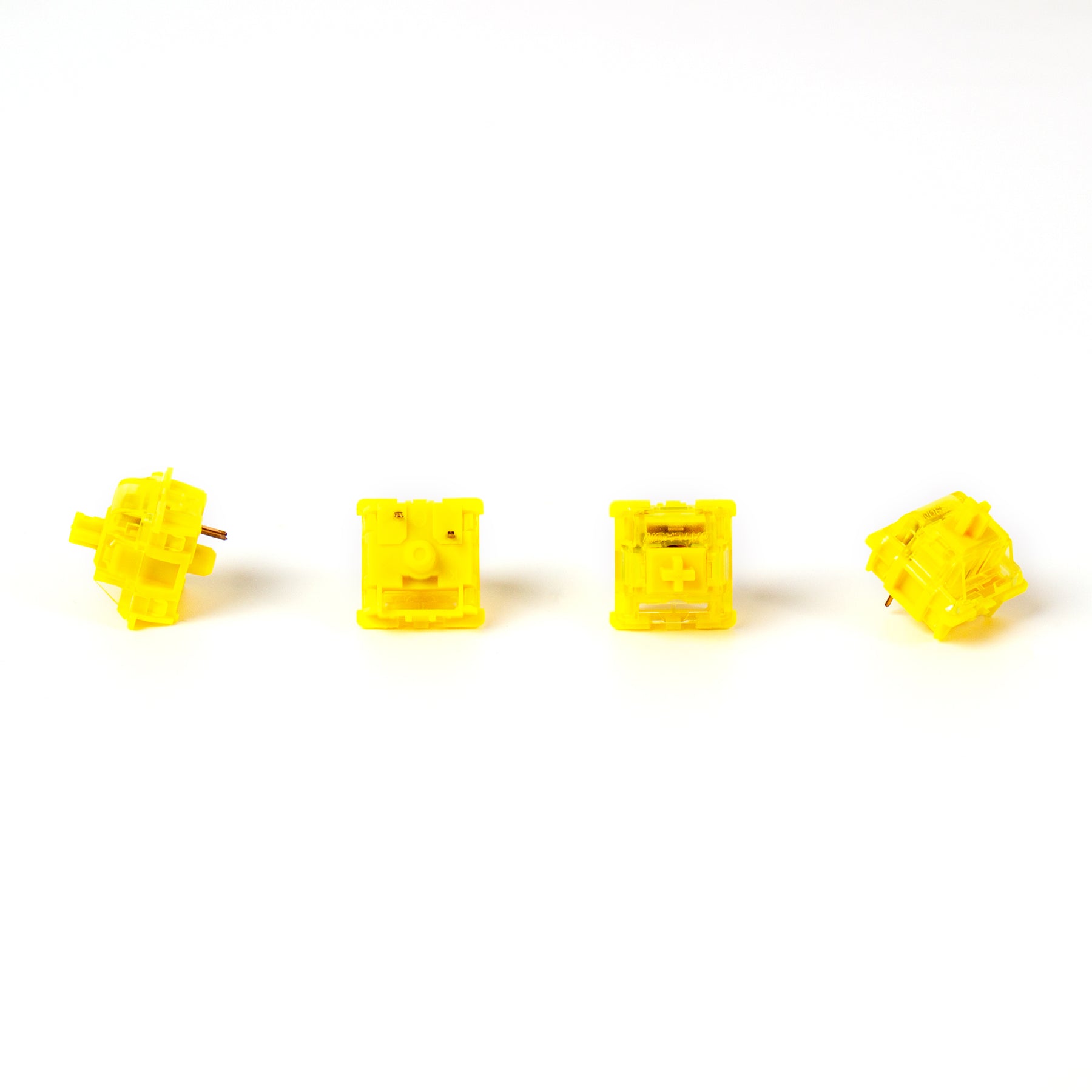

Phantom Yellow Switch
| Type | Linear |
|---|---|
| Operation Force | 50±15 gf |
| Pre-Travel | 2.0±0.6 mm |
| Total Travel | 4.0±0.6 mm |
| Operation Life | Up to 50M cycles |
| Finger Strike Feeling | Vertical, moderate pressing force, clear rebound |
Specs
| Product Name | Gateron Phantom Switch |
|---|---|
| Stem | POM, MX stem |
| Upper Housing | Proprietary Ink material, transparent housing |
| Housing Base | Nylon PA66 |
| Spring | Spring steel |
| Pins | 3-pin switch |
| Lubrication | Lubed version |
| SMD LED Support | Yes |
| Spec Sheet | Download PDF |
PS: SMD is an acronym for Surface Mounted Device. Their LEDs are attached to a rectangular printed circuit board (PCB). These LED chips can come in a variety of shapes and sizes that can produce different light intensities and colors.
Compatible Keyboards
Compatible with any hot-swaps mechanical gaming keyboards/DIY MX custom keyboards with 2-Pin LED/4-Pin LED/SMD-LED or RGB-SMD light.
