Gateron Cap V2 Switch Set
Choose options
Different Gateron Cap V2 Switches Features
Click here to know more about Gateron switches
New “Cap” Switch Mold
The Gateron Cap V2 Switch utilizes a new mold that is similar to a cap, that’s why we named it “Cap Switch”. The upgraded structure for the new switch series offers a smooth and tactile typing experience. It’s also fully compatible with 2-Pin/4-Pin LED, RGB-LED, and mechanical keyboard hot-swappable versions without modifications.
More Stable
The stem post is enlarged and hollowed out to make the switch more stable with almost no wobbliness. This first-generation gold-plated contact offers better oxidation resistance and a product lifespan of 60 million cycles.
Unique Stem Design
Based on aerodynamics theory, the stem with 0.4-sized tiny holes can release excess air and reduce resistance when the key switch is triggered, making it smoother.
Factory Pre-lubed
The switches are well lubed before leaving the factory, which generally improves the smoothness and stability. There is no need for you to lubricate it again.
Note: Cap Blue Switch is unlubed.
Factory Self-lubricated
The switches are well lubed before leaving the factory, which generally improves the smoothness and stability. There is no need for you to lubricate it again.
Note: Cap Blue Switch is unlubed.
Typing Sound Test
Product Information

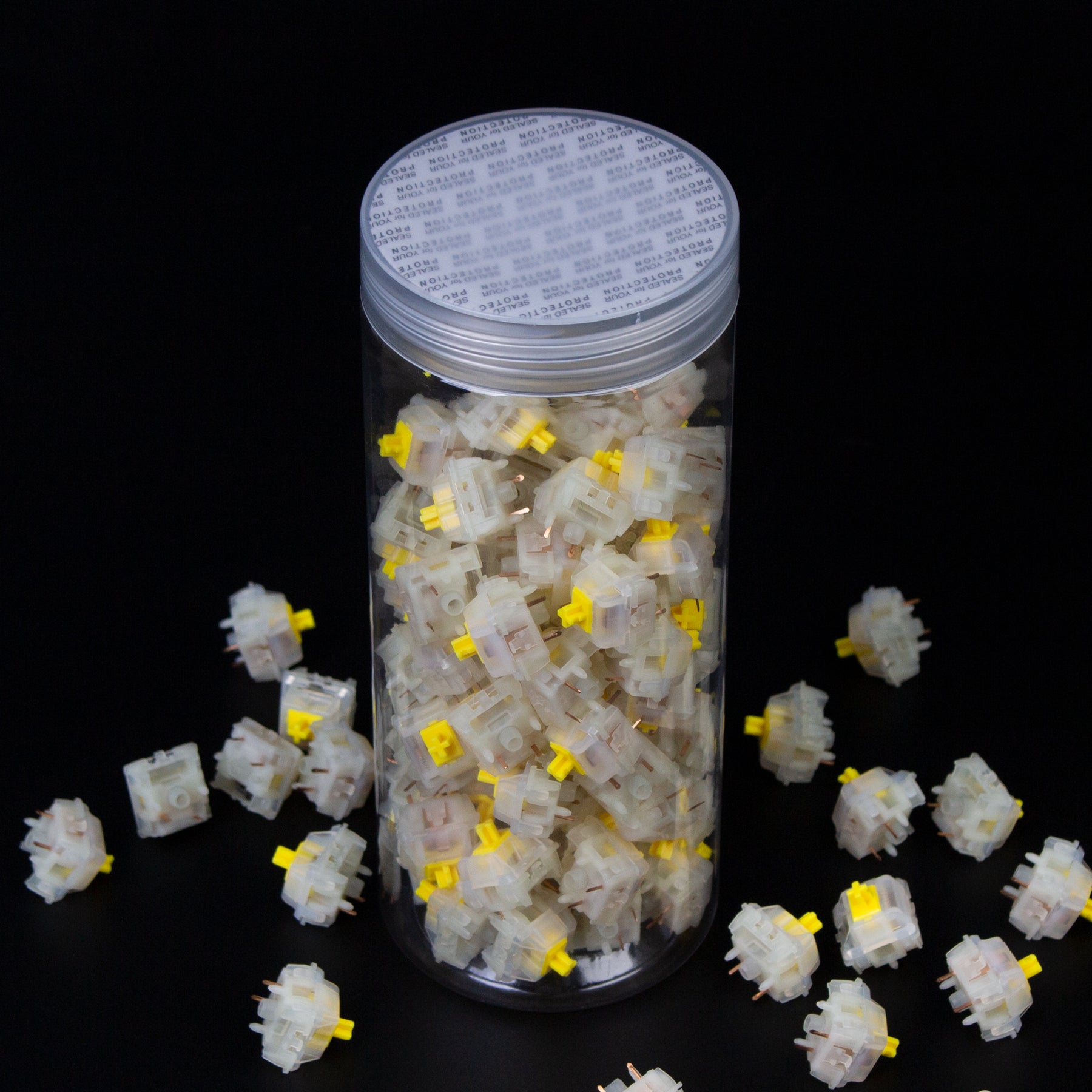

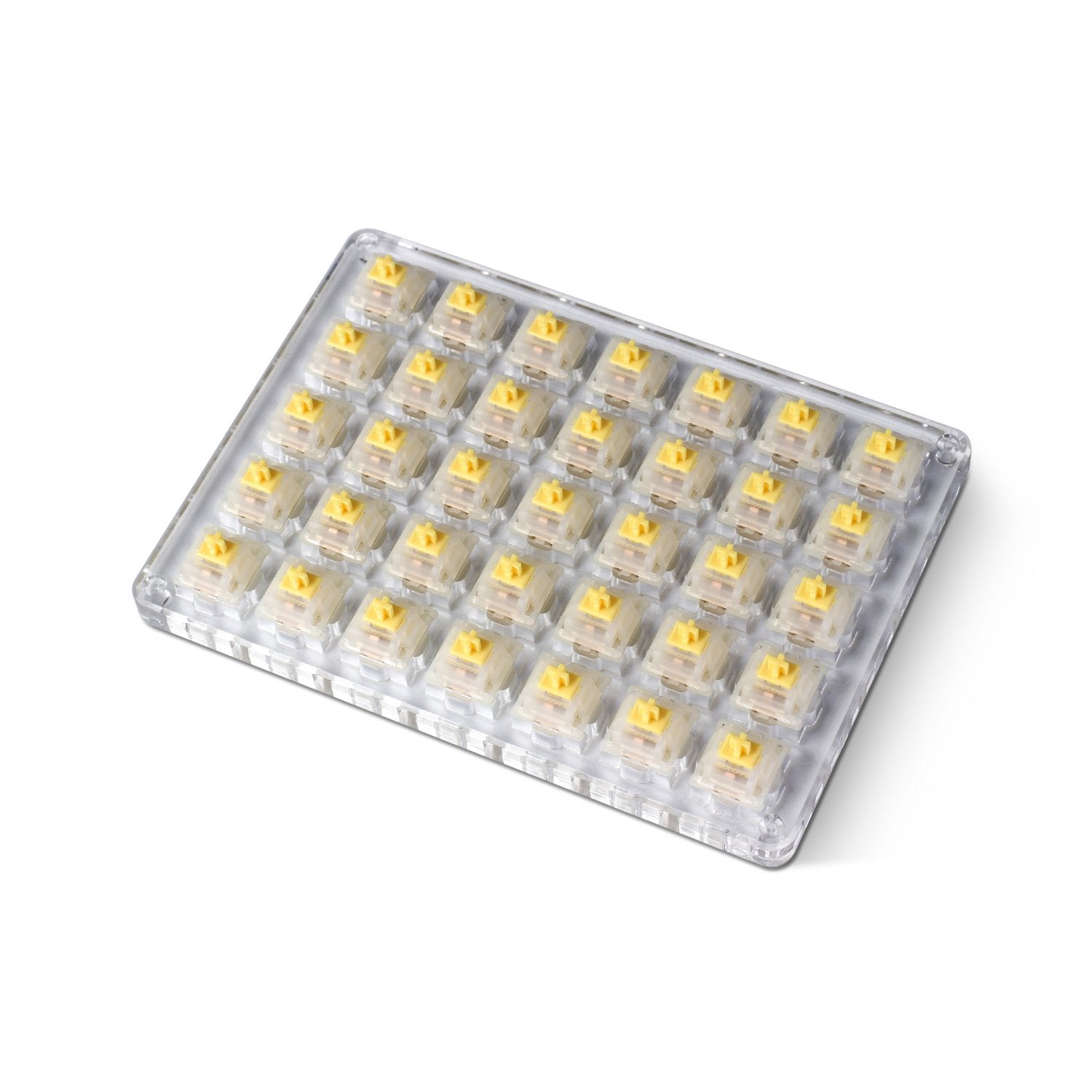

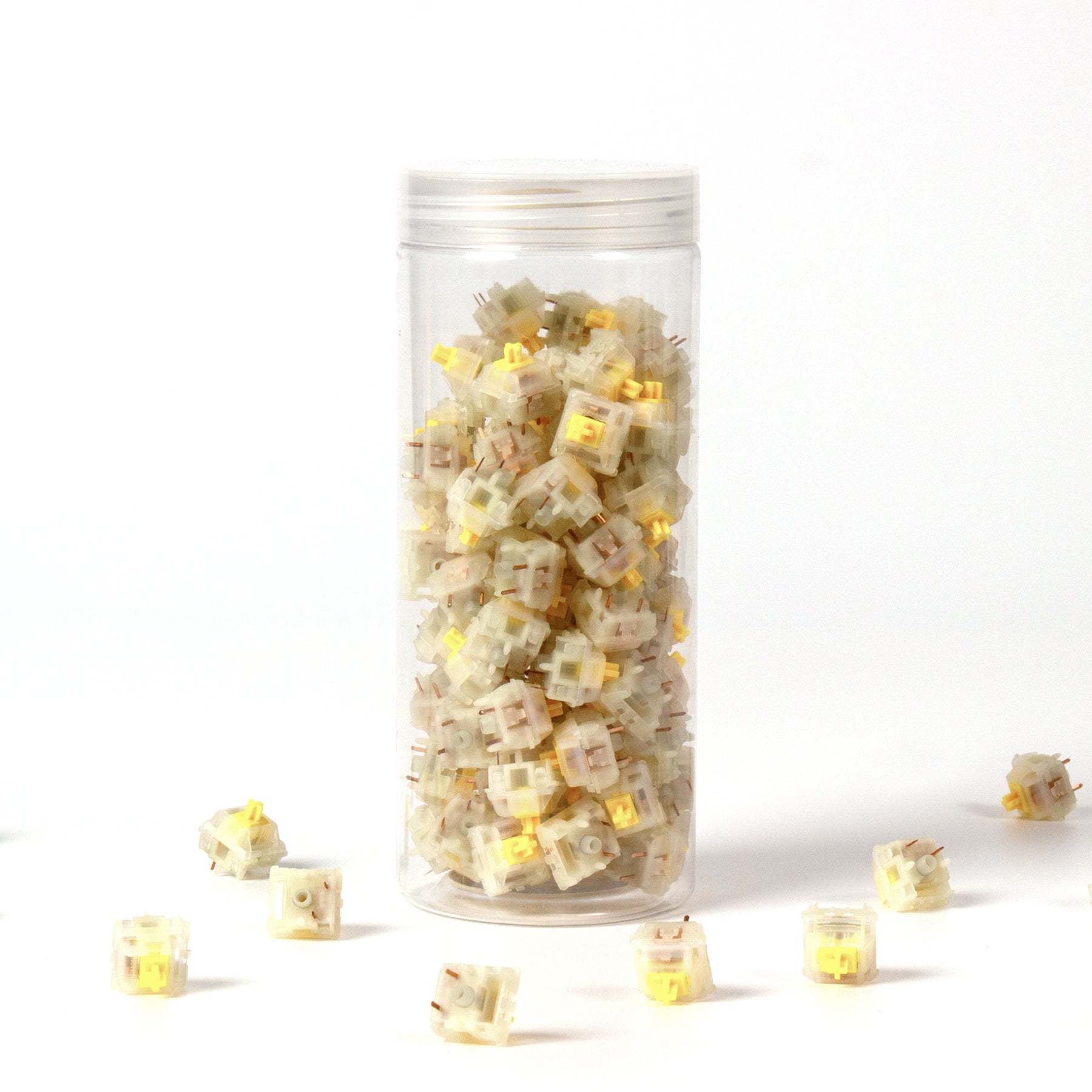

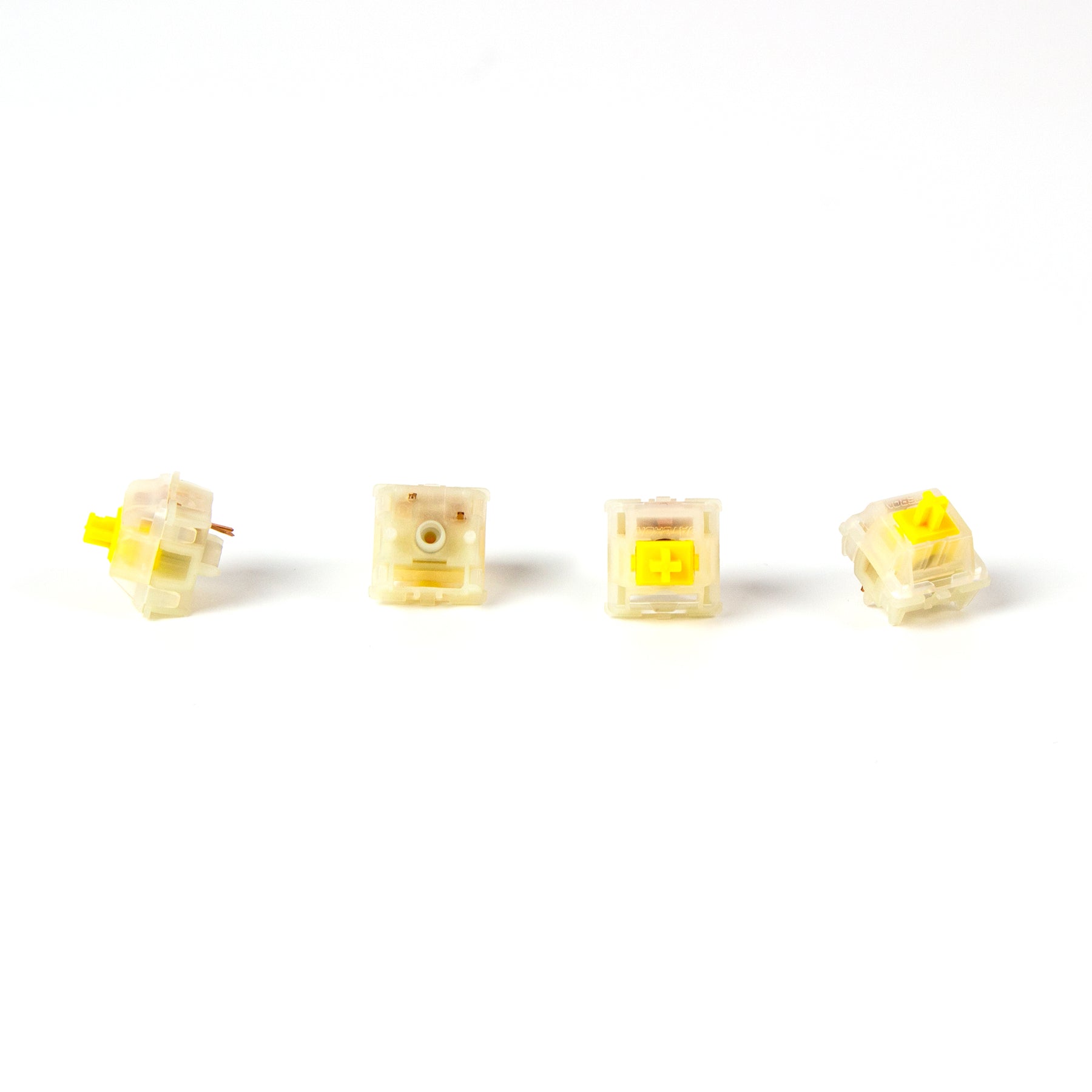

Milky Yellow Switch
Type | Linear |
---|---|
Operation Force | 50±15 gf |
Pre-Travel | 2.0±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 80M cycles |
Finger Strike Feeling | Vertical, moderate pressing force, clear rebound |

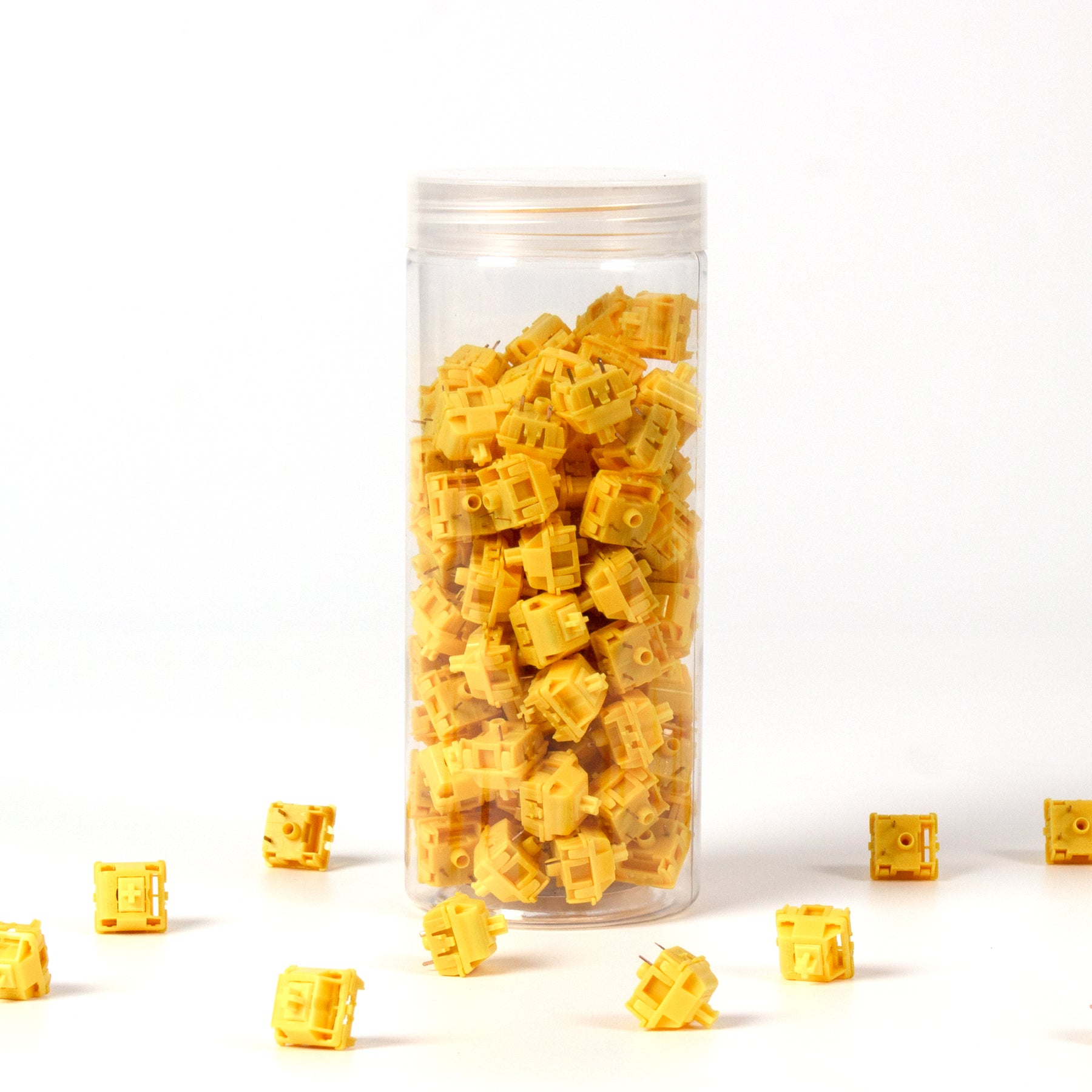

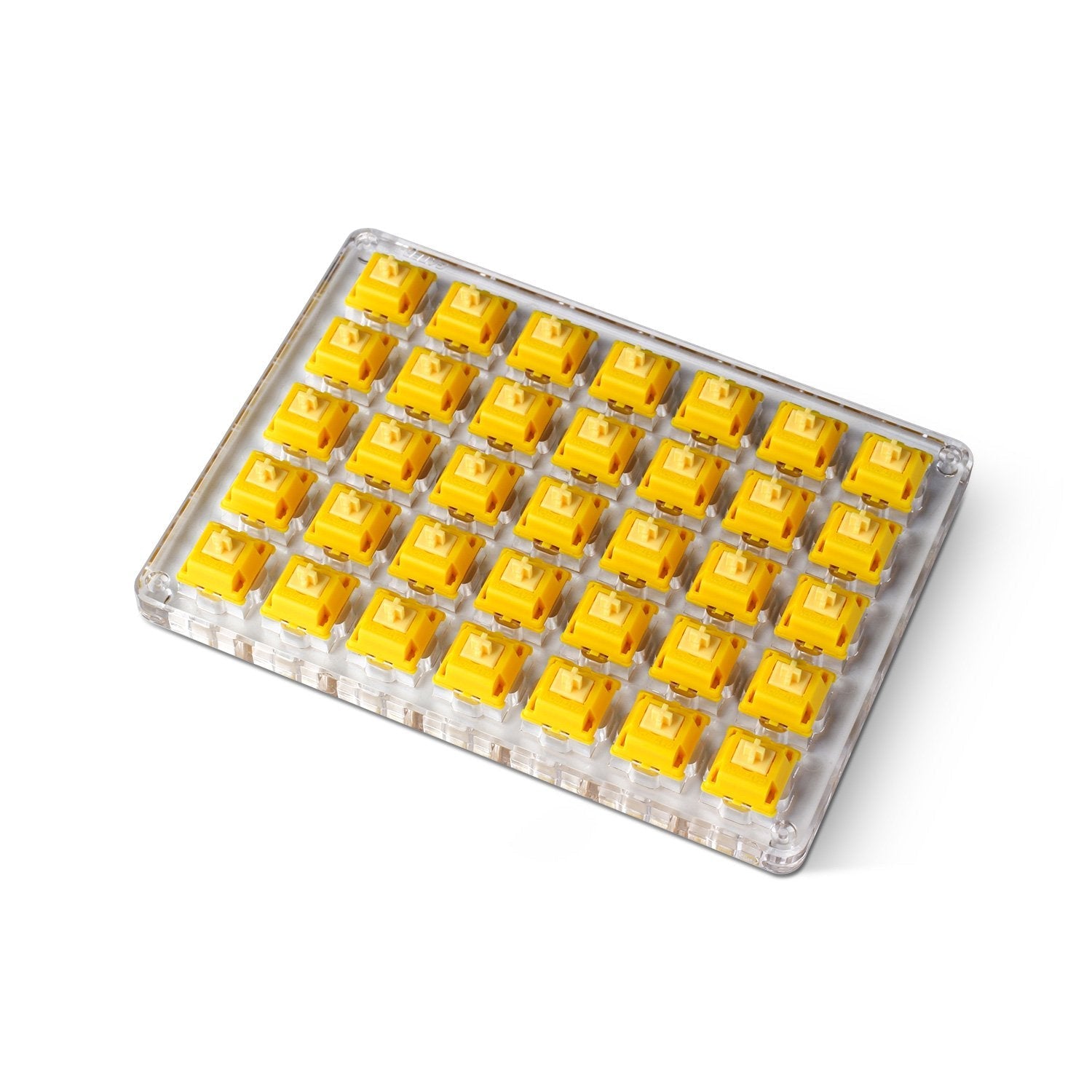

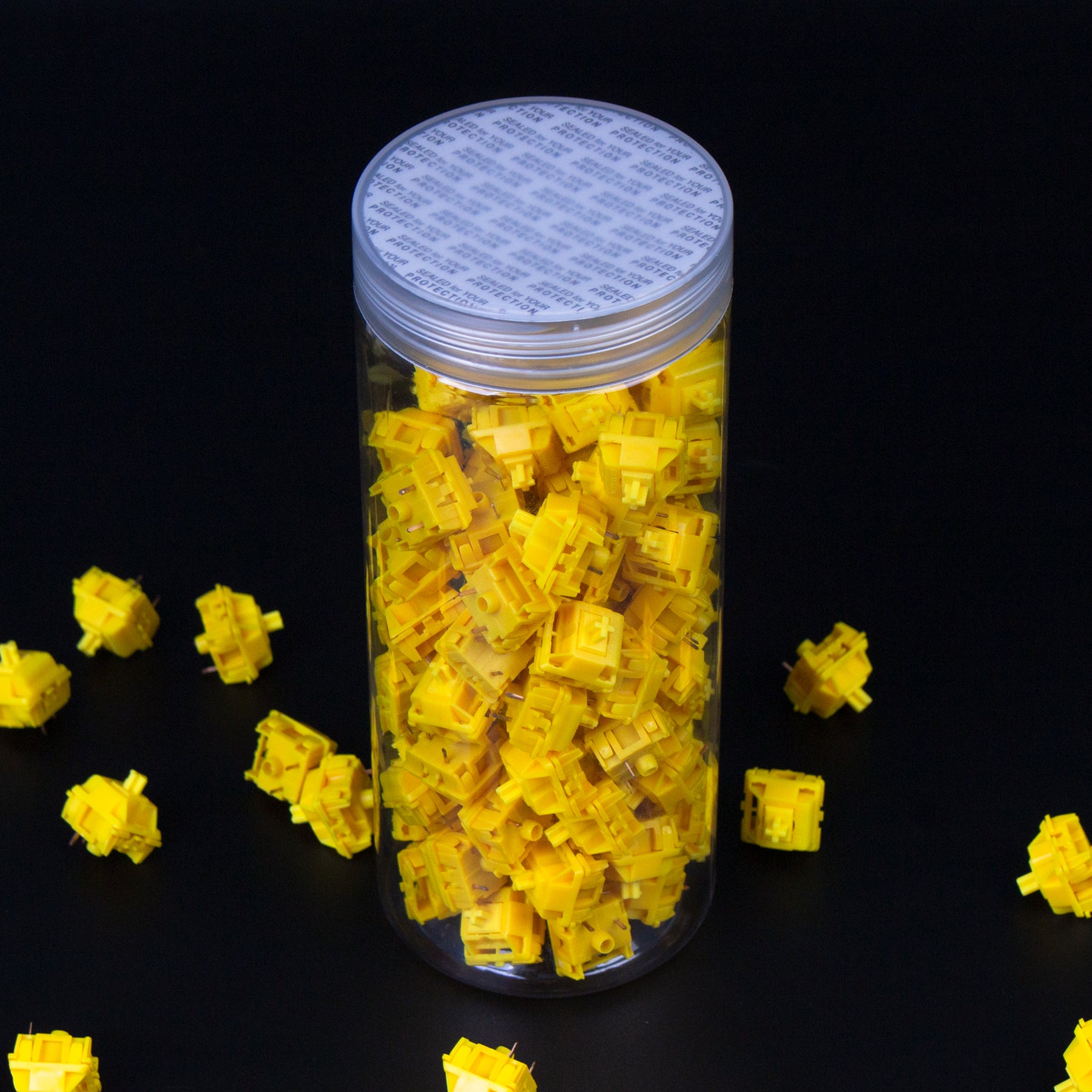

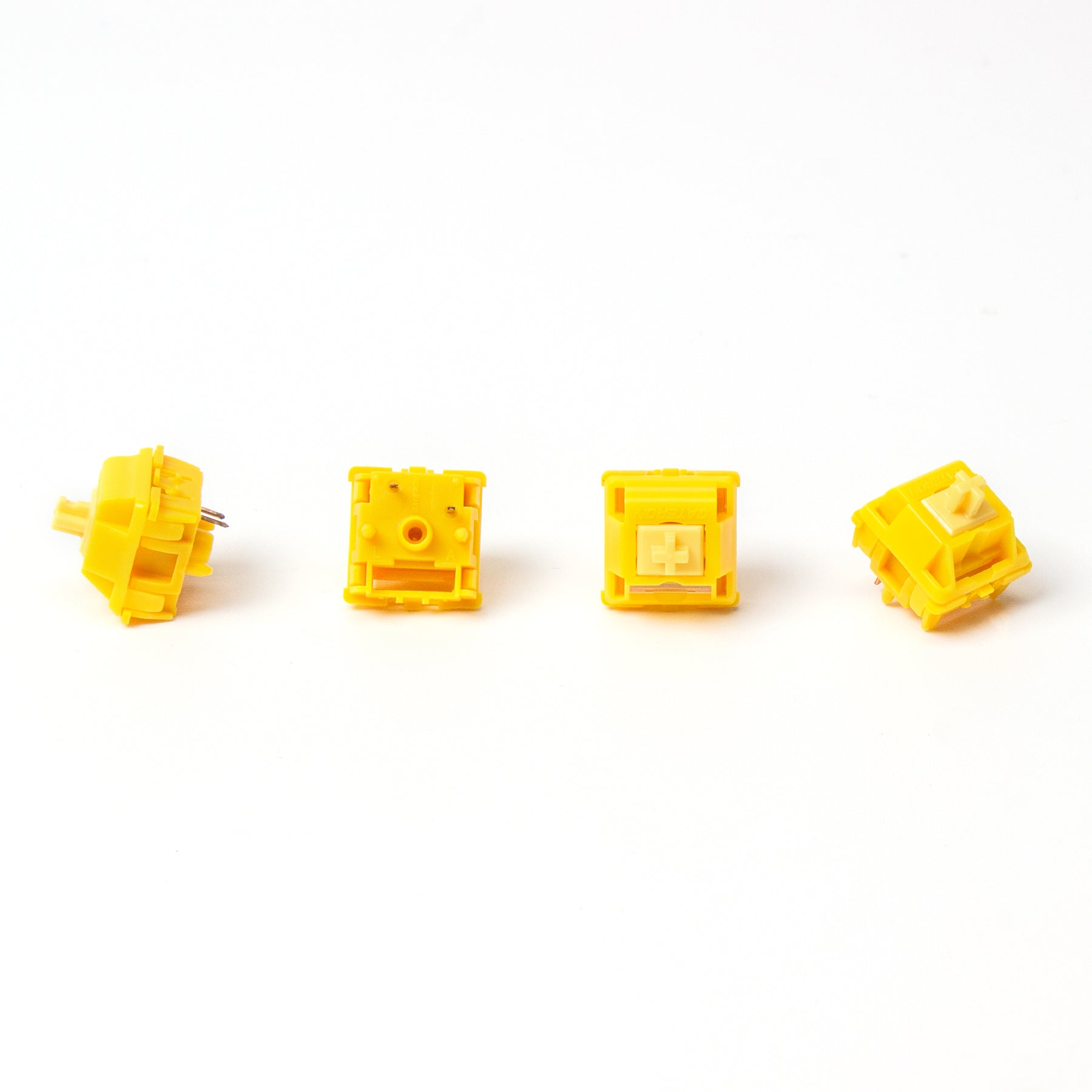

Golden Yellow Switch
Type | Linear |
---|---|
Operation Force | 50±15 gf |
Pre-Travel | 2.0±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 80M cycles |
Finger Strike Feeling | Vertical, moderate pressing force, clear rebound |

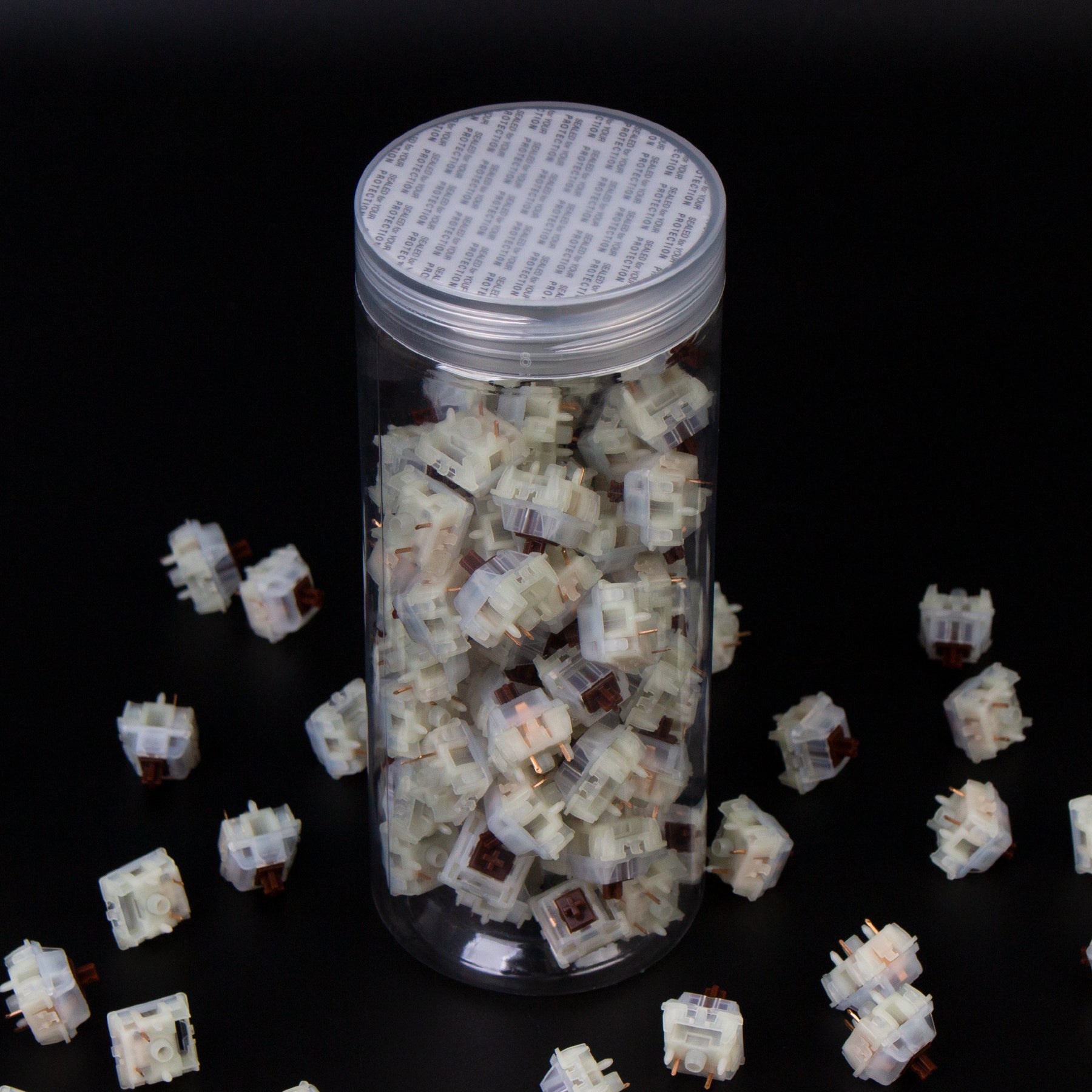

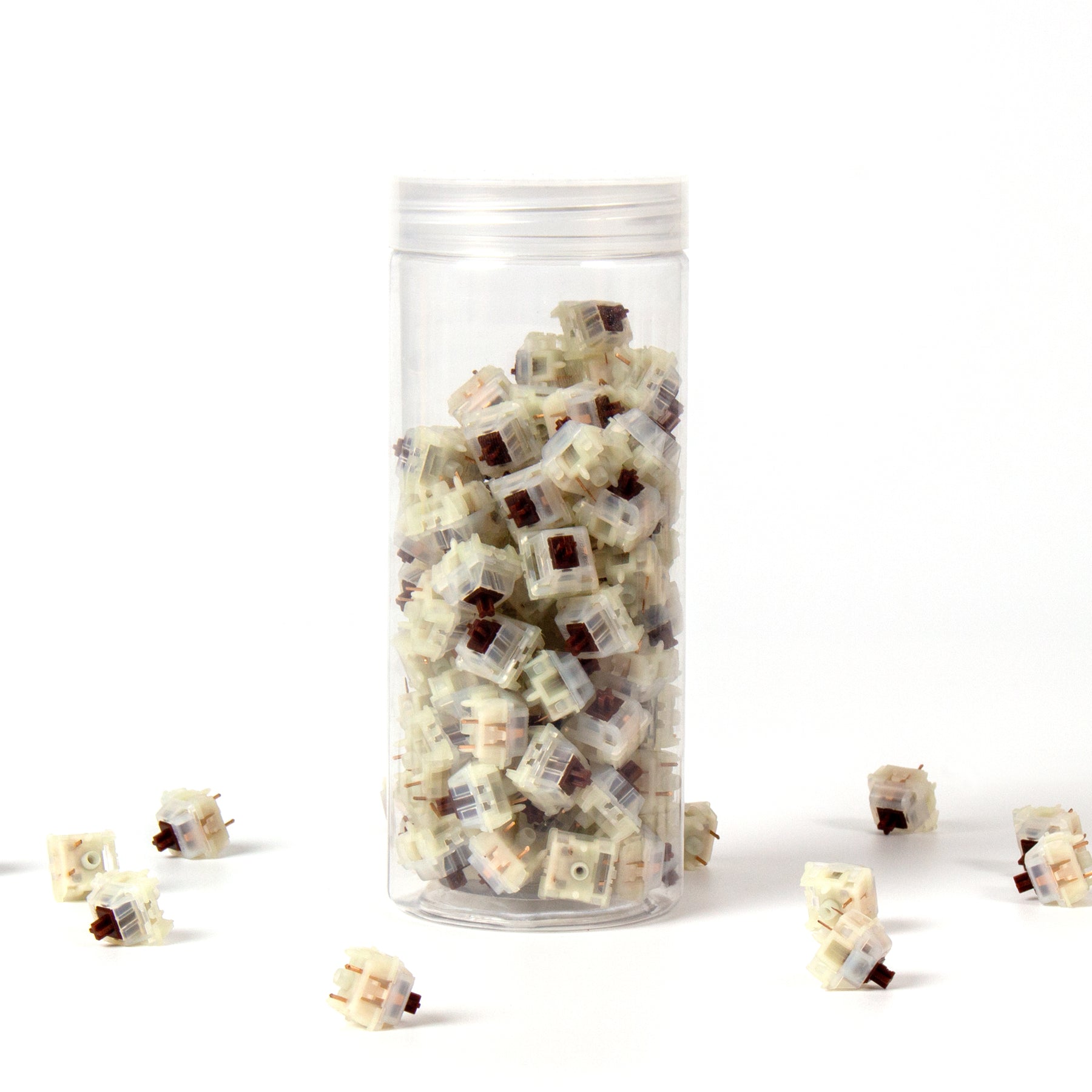

Milky Brown Switch
Type | Tactile |
---|---|
Operation Force | 55±15 gf |
Pre-Travel | 2.0±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 60M cycles |
Finger Strike Feeling | Bump, moderate pressing force, clear rebound |

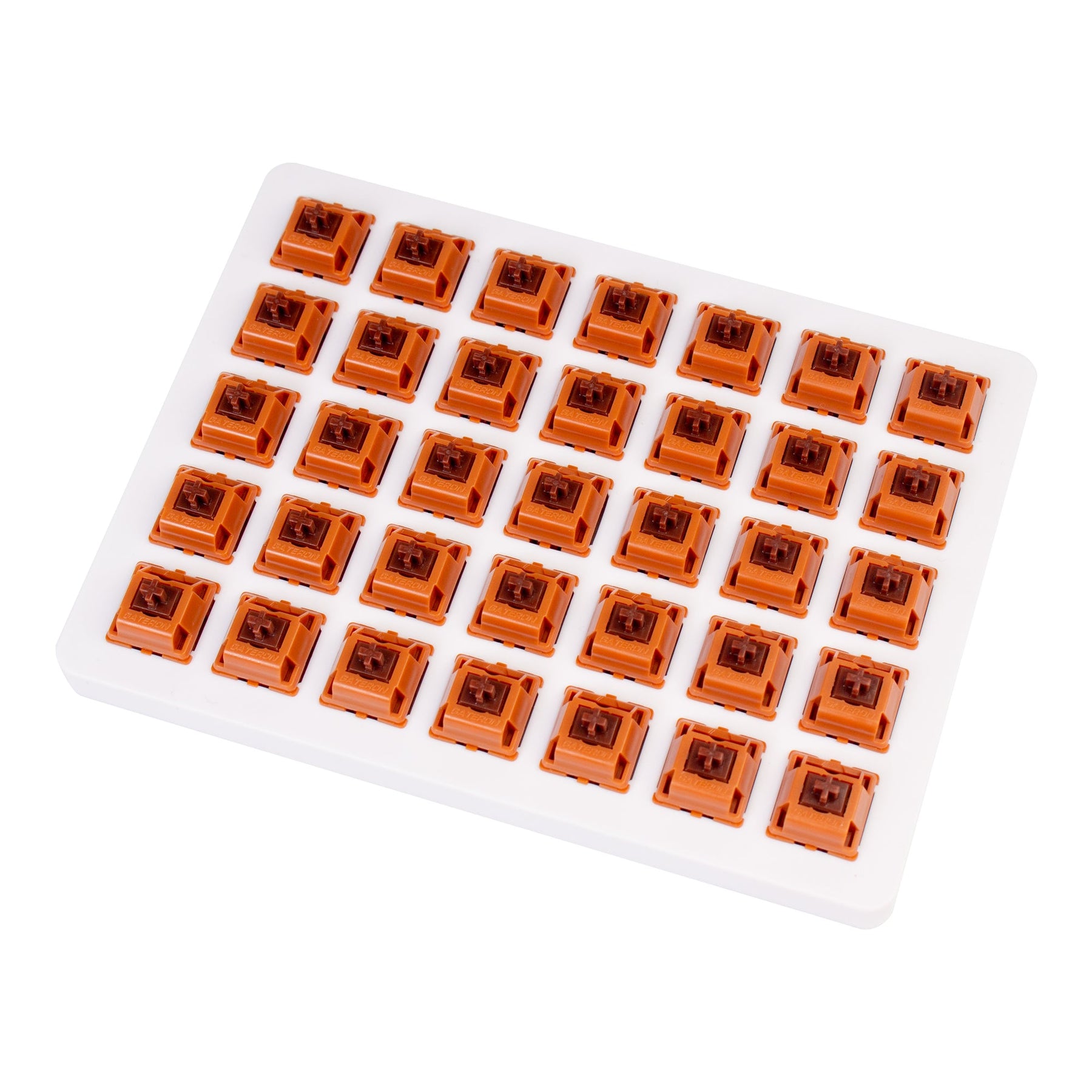

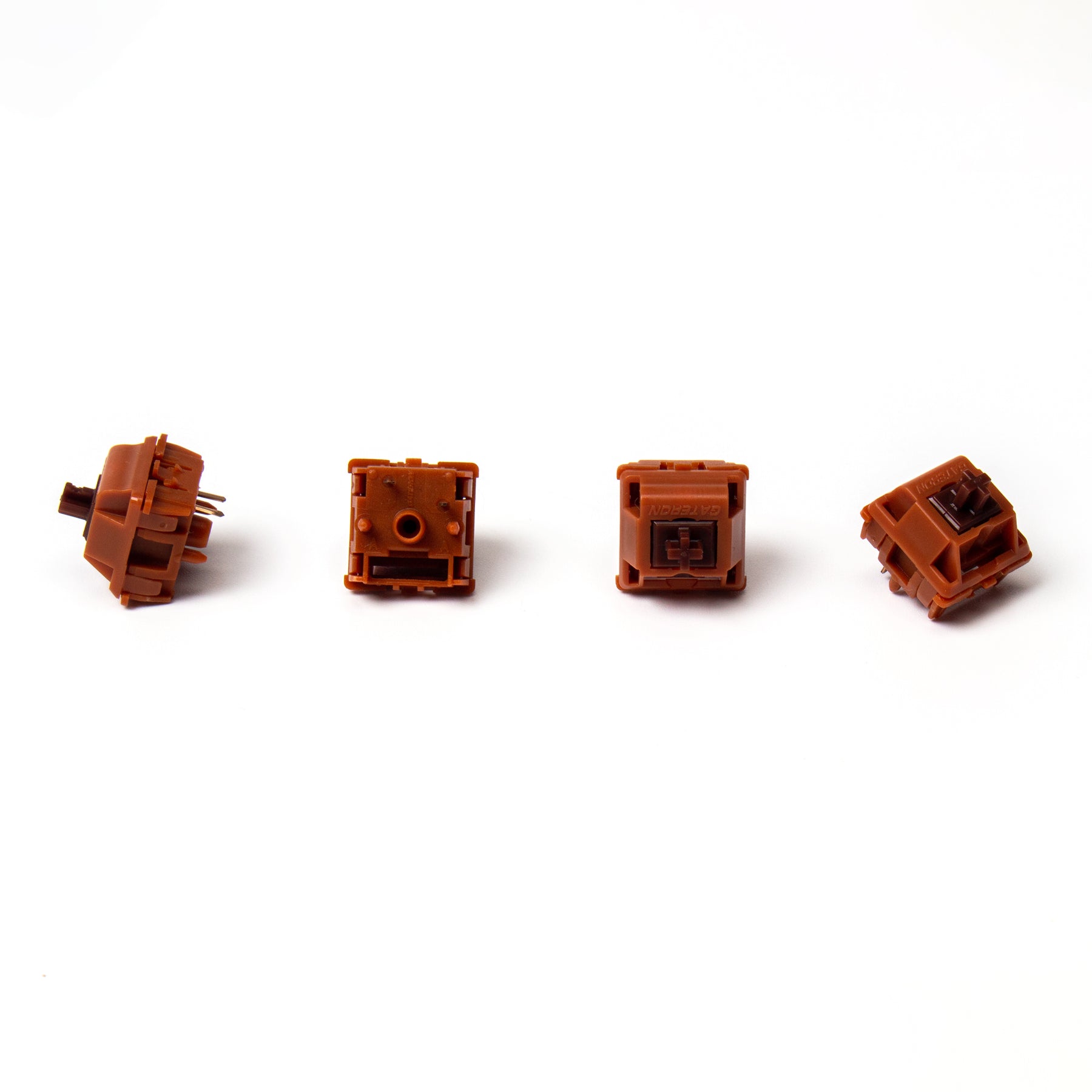

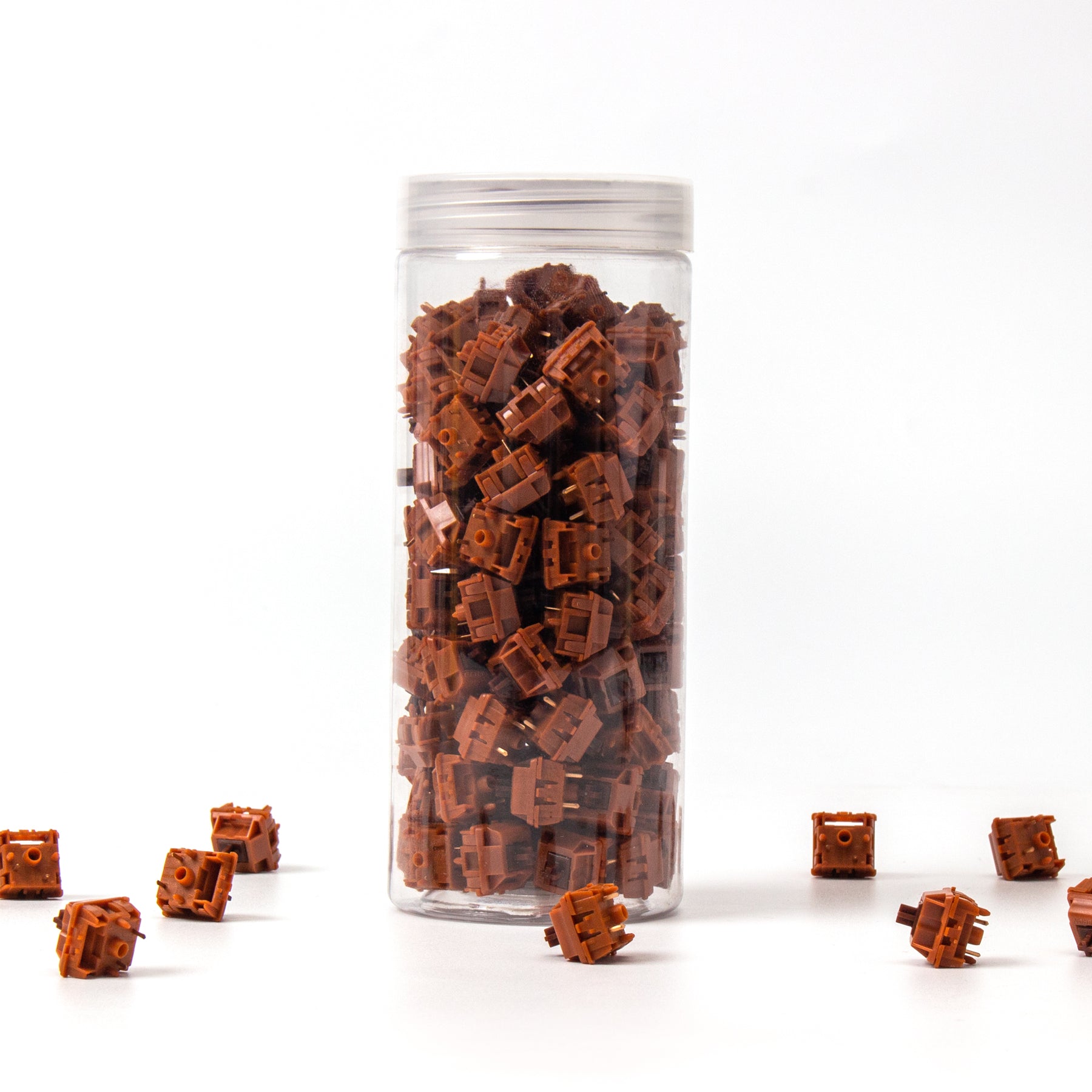

Golden Brown Switch
Type | Tactile |
---|---|
Operation Force | 55±15 gf |
Pre-Travel | 2.0±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 60M cycles |
Finger Strike Feeling | Bump, moderate pressing force, clear rebound |

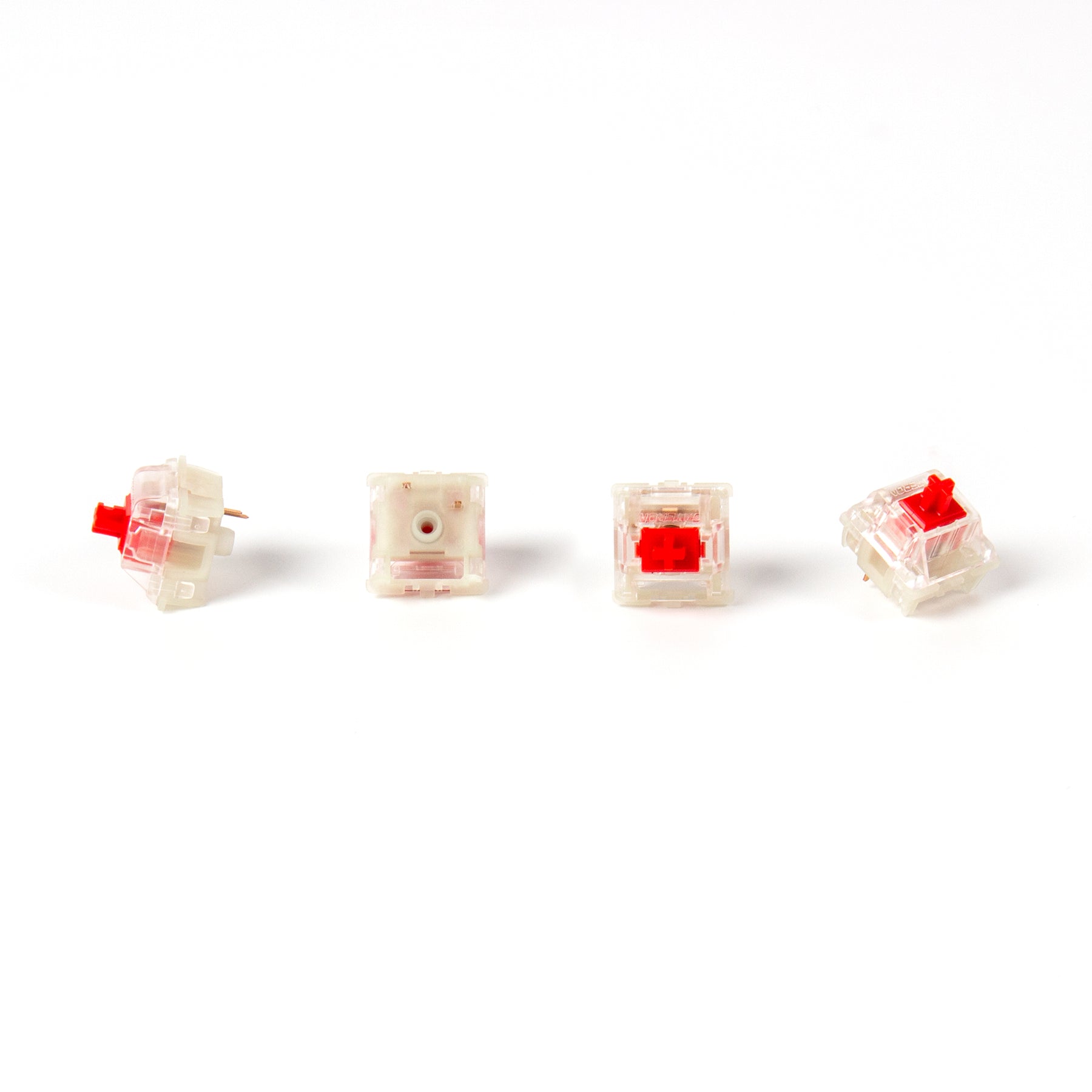

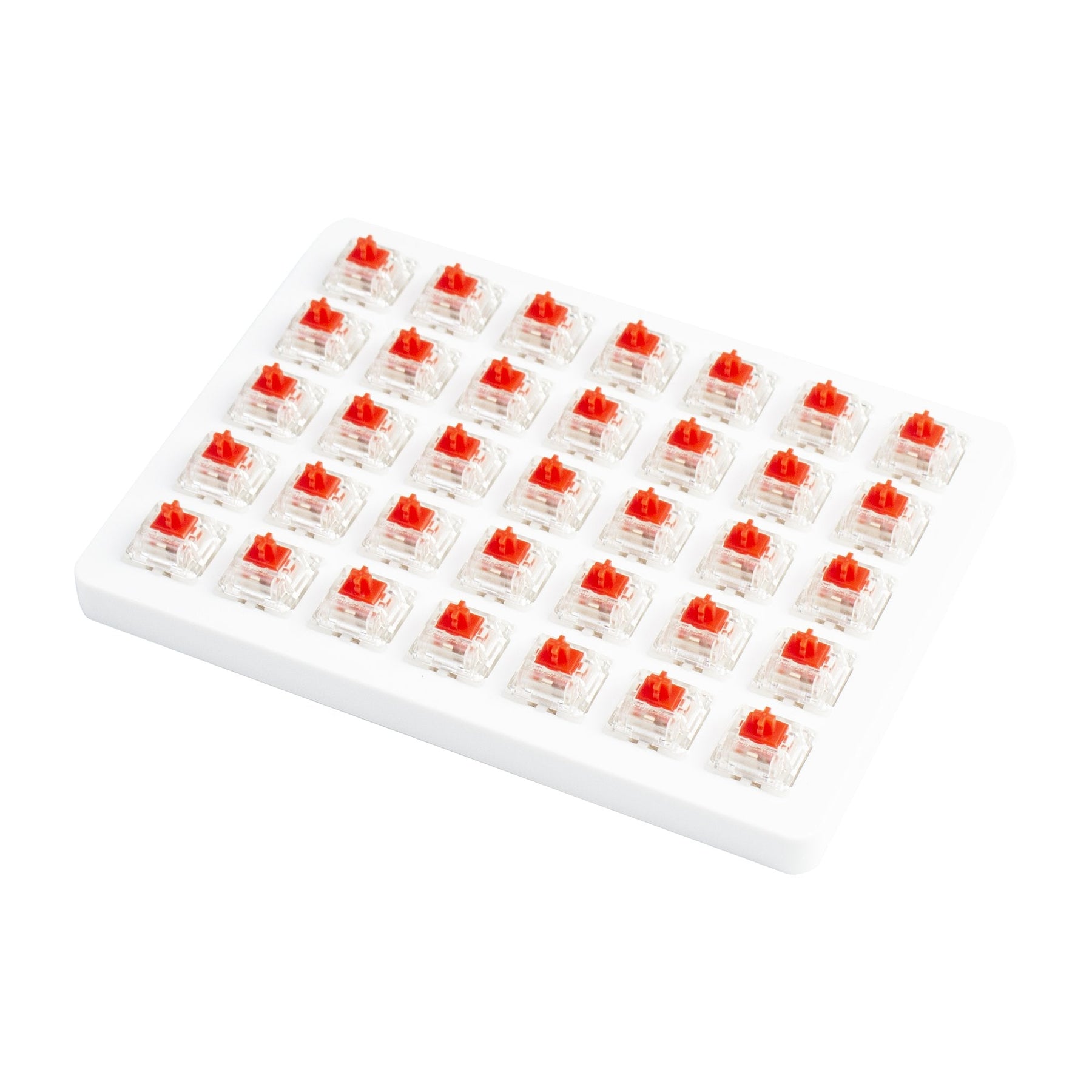

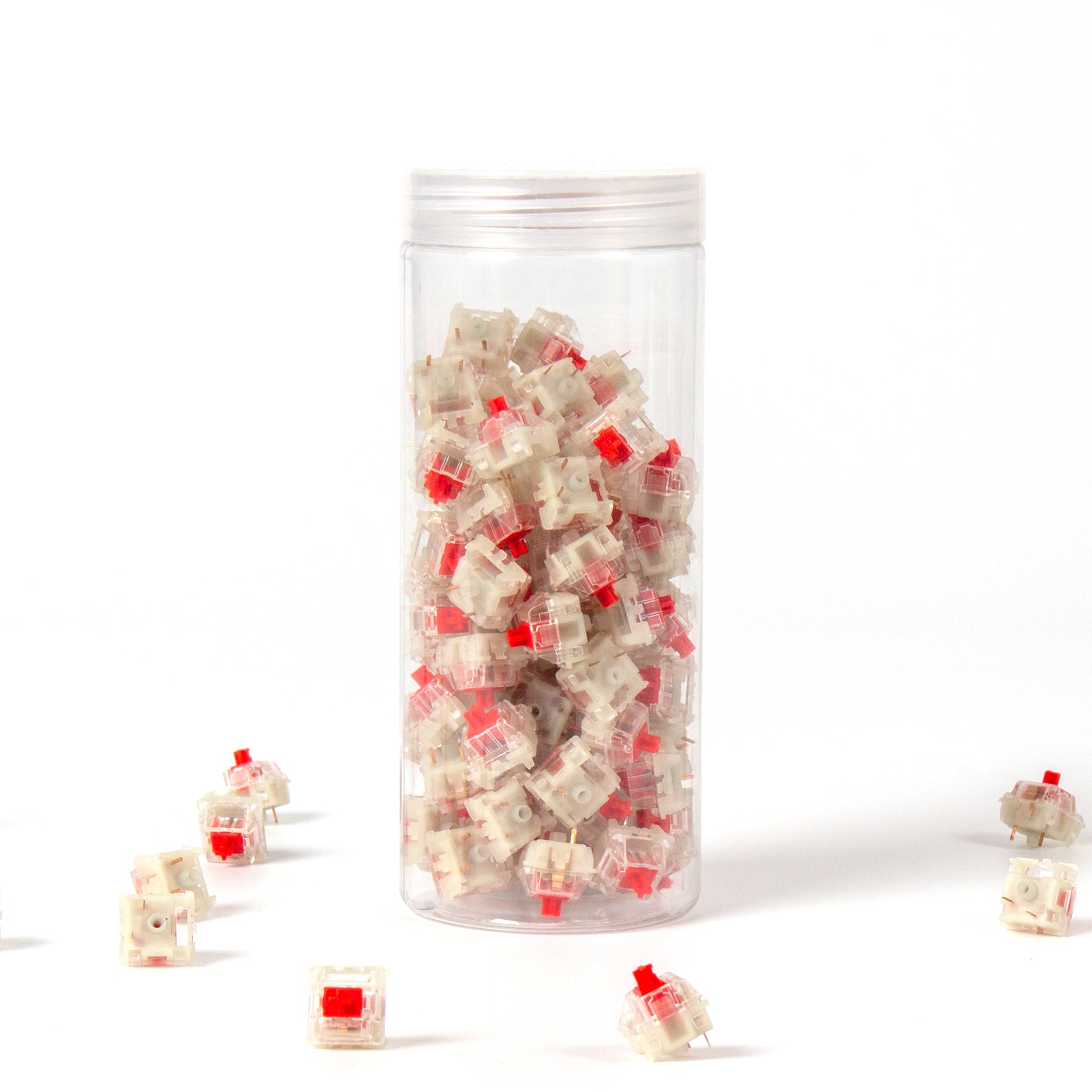

Red Switch
Type | Linear |
---|---|
Operation Force | 45±15 gf |
Pre-Travel | 2.0±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 80M cycles |
Finger Strike Feeling | Vertical, light pressing force, soft rebound |

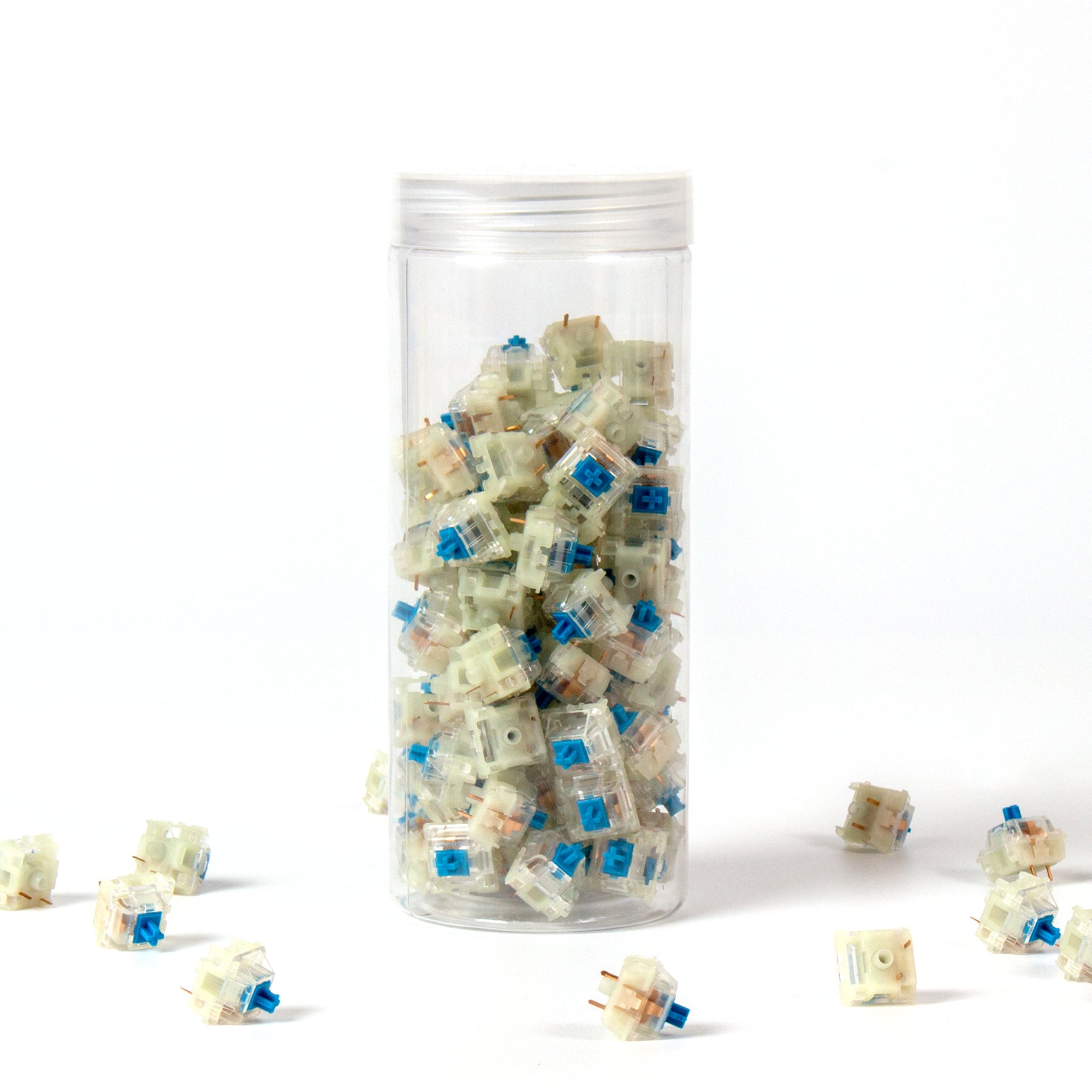

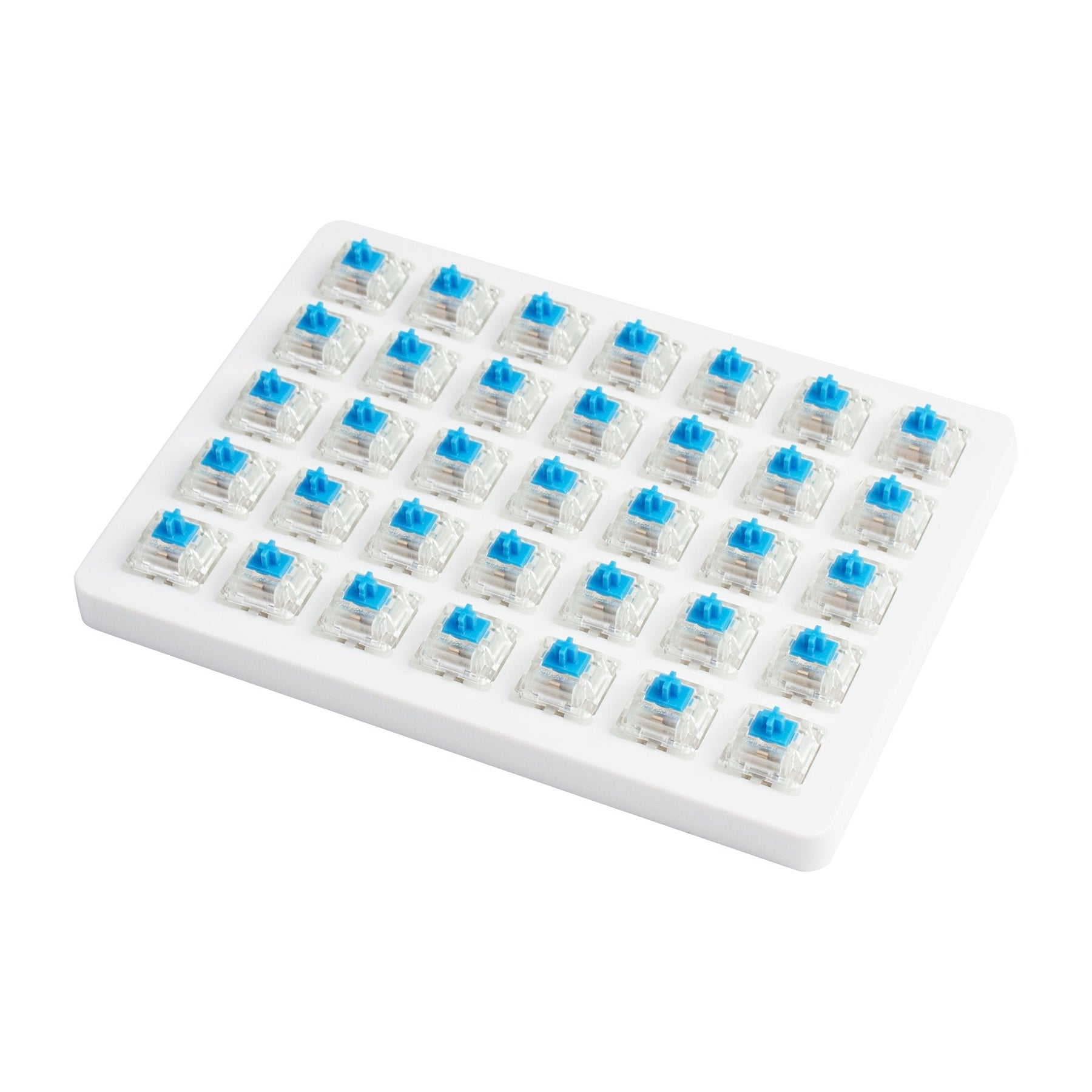

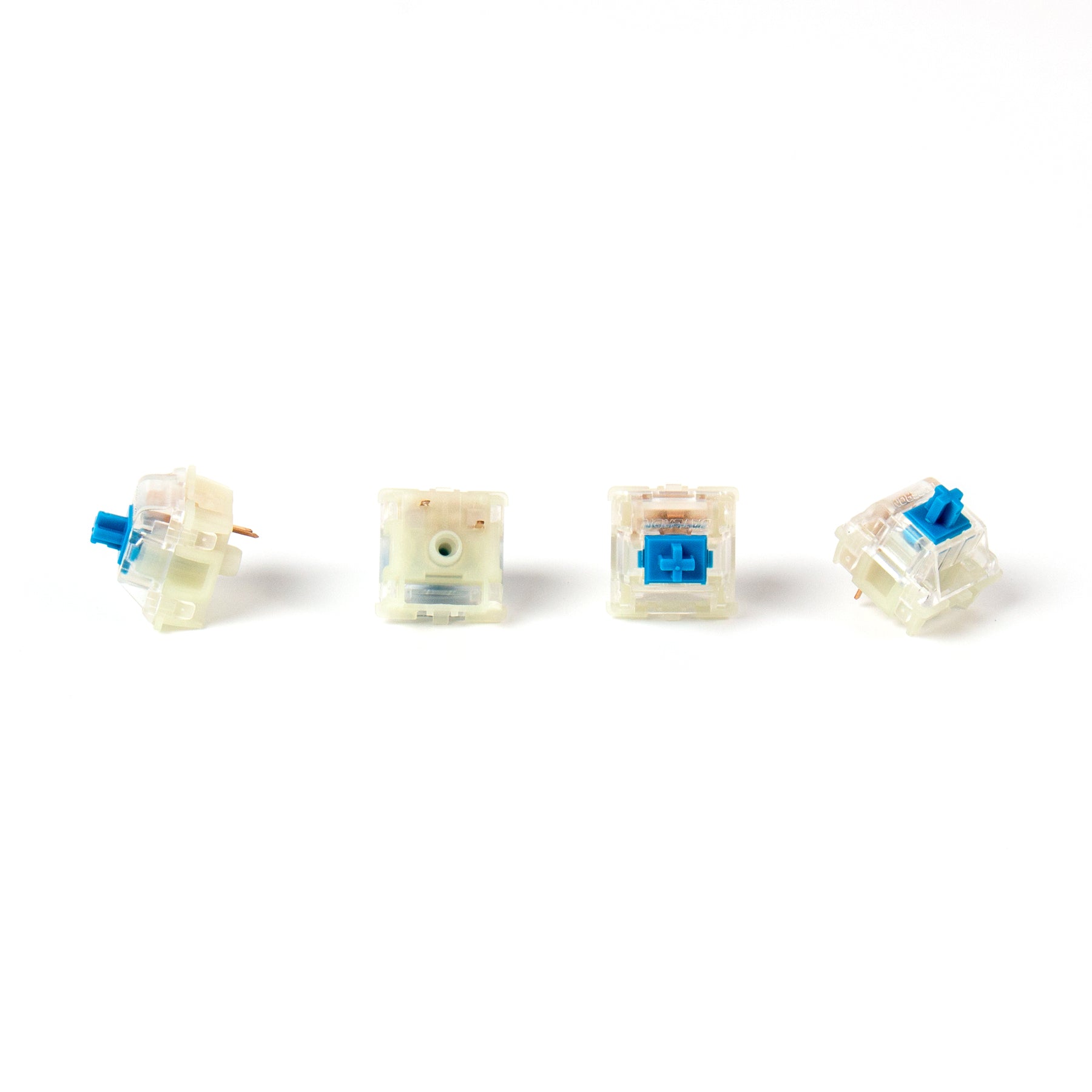

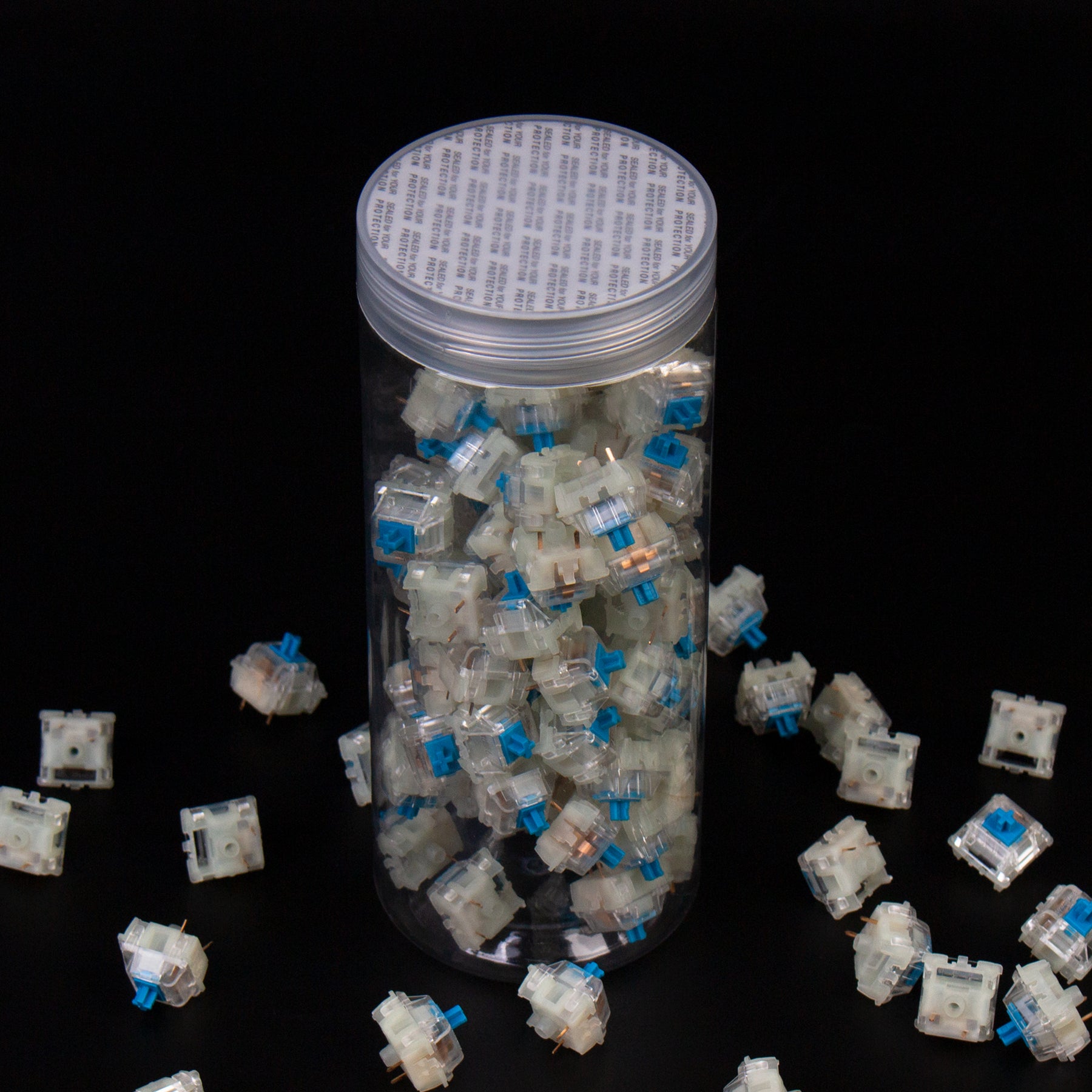

Blue Switch
Type | Clicky |
---|---|
Operation Force | 60±15 gf |
Pre-Travel | 2.3±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 60M cycles |
Finger Strike Feeling | Clicky, moderate pressing force, clear rebound |

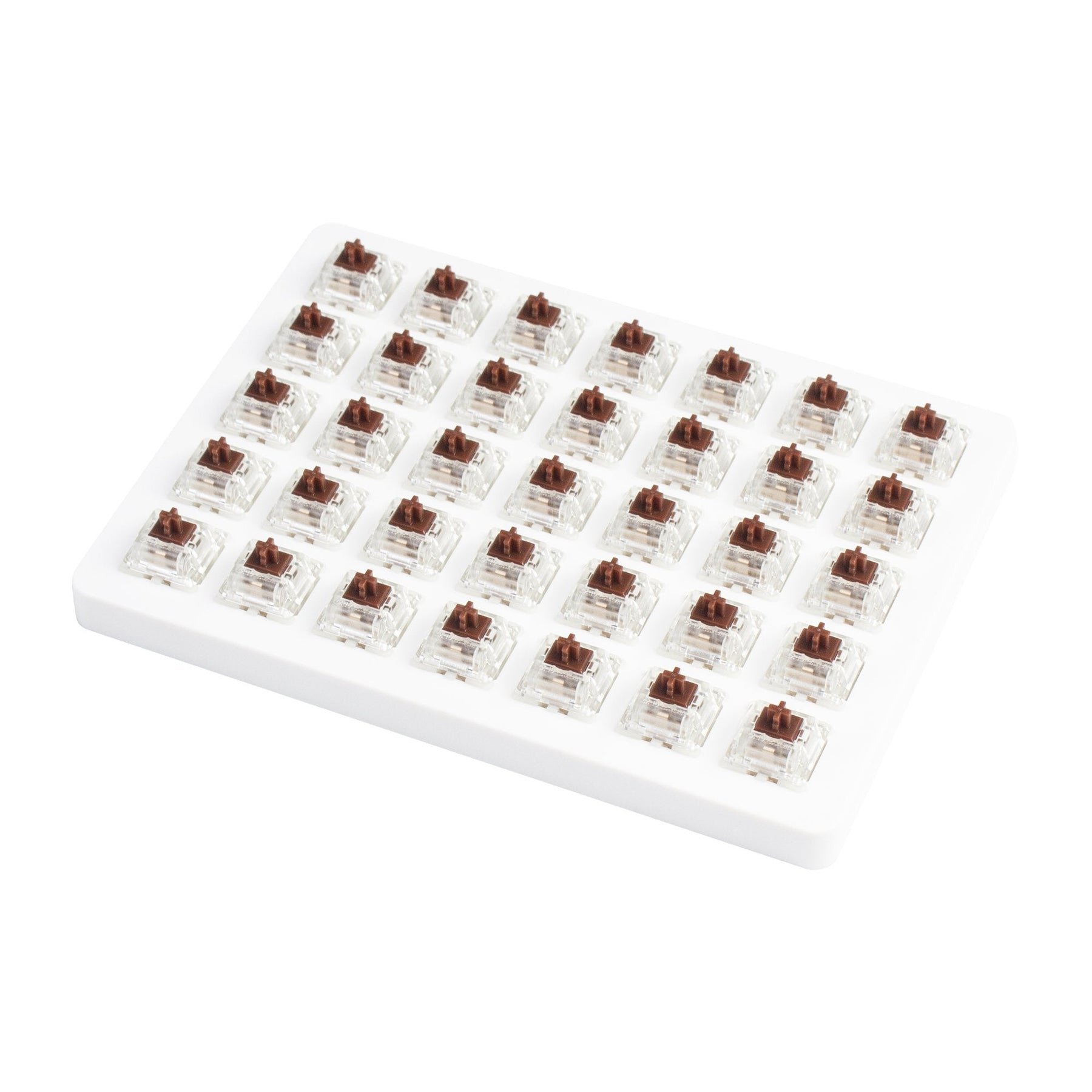

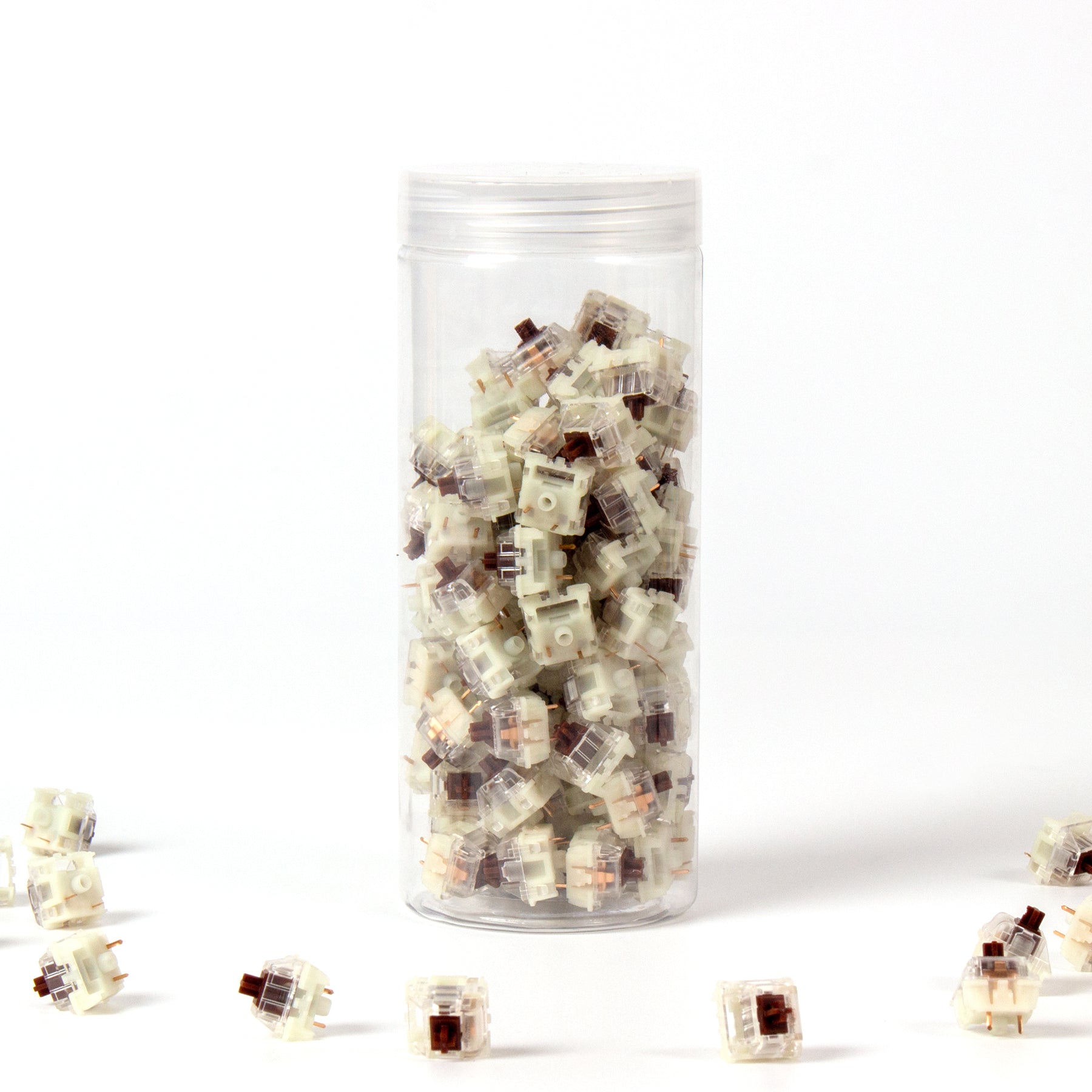

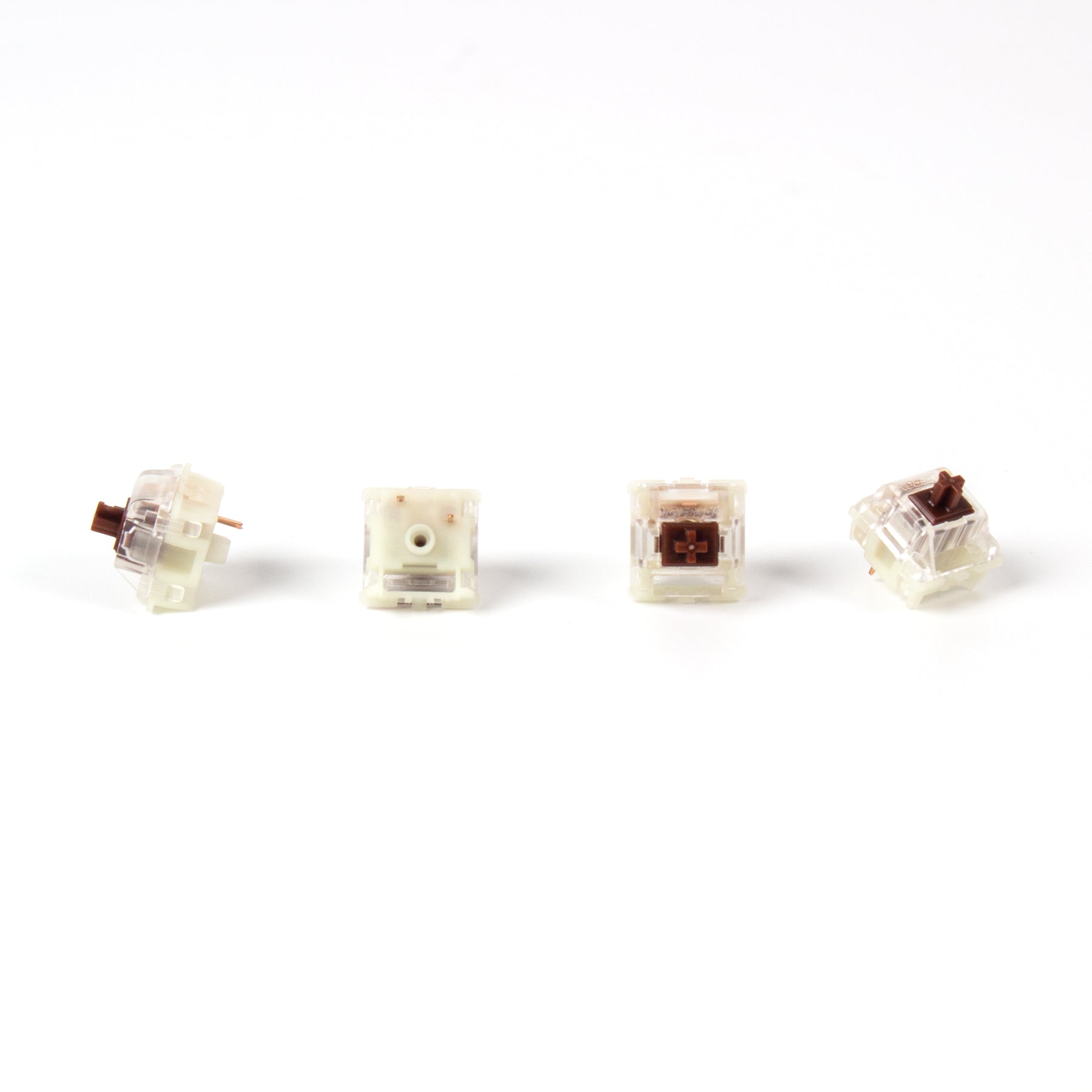

Brown Switch
Type | Tactile |
---|---|
Operation Force | 55±15 gf |
Pre-Travel | 2.0±0.6 mm |
Total Travel | 4.0 mm Max. |
Operation Life | Up to 60M cycles |
Finger Strike Feeling | Bump, moderate pressing force, clear rebound |
Specs
Product Name | Gateron Cap V2 Switch |
---|---|
Stem | POM, MX stem |
Upper Housing | Nylon PA66 (Milky, Golden, Brown, Transparent), PC (Cap Red, Cap Blue, Cap Brown) |
Housing Base | Nylon PA66 |
Spring | Gold-Plated Spring (Golden, Brown)/Non-Plated Spring (Milky) |
Pins | 5-Pin switch,3-Pin switch (Cap Red, Cap Blue, Cap Brown) |
Lubrication | Lubed version |
SMD LED Support | Yes |
Note: Because of different batches, all Cap Milky-Yellow (35 pcs), Cap Milky-Brown (35 pcs), Cap Golden-Brown (35 pcs), Cap Golden-Yellow (35 pcs) are available in the 3-Pin version and the 5-Pin version. We will random delivery.
PS: SMD is an acronym for Surface Mounted Device. Their LEDs are attached to a rectangular printed circuit board (PCB). These LED chips can come in a variety of shapes and sizes that can produce different light intensities and colors.
Compatible Keyboards
Compatible with any 5-Pin MX mechanical (hot-swappable) keyboard with 2-Pin LED/4-Pin LED/SMD-LED or RGB-LED lights. Note that the Cap Red Switch, Cap Blue Switch, and Cap Brown Switch are not compatible with any mechanical keyboard with a plug-in light.
Notice: Due to the housing design of the Gateron Cap Milky-Yellow, Golden-Yellow, and Golden-Brown switches, the backlight effect will not be that visible. The above pictures of 3-Pin switches are for product display only, and the actual delivery is 5-Pin switches.
