Gateron Jupiter Switch Set
Choose options
Gateron Jupiter Switch
We’re extending the gaming experience, Keychron has teamed up with Gateron to introduce our exclusive Jupiter Switch to the market. Jupiter switches differ from Gateron’s conventional switches with their brand new molds with higher precision and softer backlight effect. Their housing base also has precisely molded nylon and high-quality springs inside to bring a satisfying typing feel.
Premium Typing Experience
Every detail of the Gateron Jupiter switch is carefully designed to provide near-perfect consistency and smoothness when pressing it. It comes in red, brown, and banana. These custom switches are available in linear and tactile.
Gateron Jupiter Banana switch provides earlier tactile bumps and stronger tactile feedback than a regular brown switch. It features a two-stage spring to provide a stronger return and a more consistent feel.
Softer Backlight Effect
Compared to regular Gateron switches, the Jupiter switch is crafted with a unique LED diffuser in its transparent housing cover to allow the light to disperse more and softer while maintaining high RGB backlight transmittance for a better backlight effect.
Stable 5 Pins
The "Double-Core" robust 5 pins provide better stability and durability for the switch, guaranteeing it can last up to 80 million presses.
Stable 5 Pins
The "Double-Core" robust 5 pins provide better stability and durability for the switch, guaranteeing it can last up to 80 million presses.
Factory Pre-Lubed
The Gateron Jupiter switches are pre-lubed in the factory to reduce friction and wear. They also deliver a smoother typing experience.
Product Information

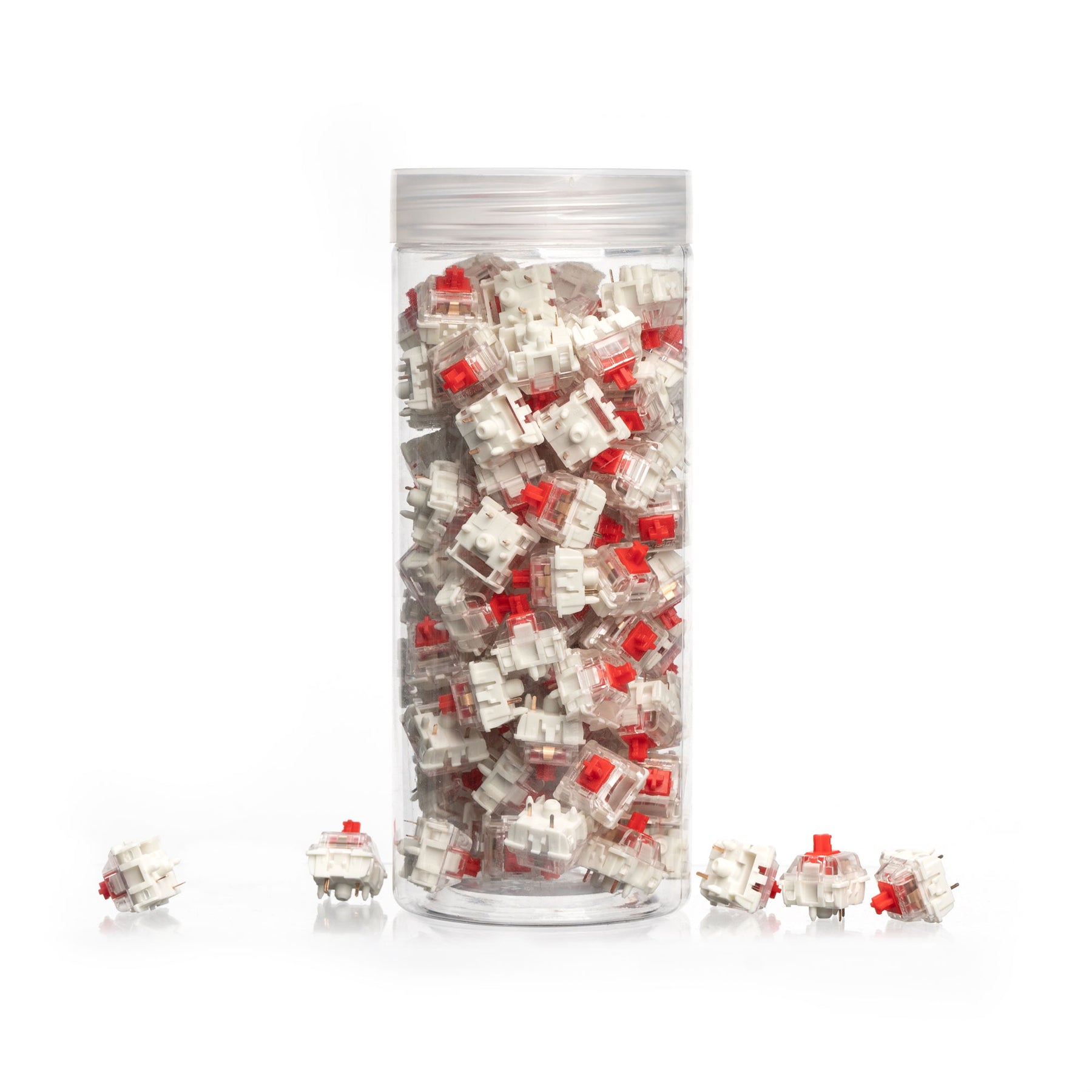

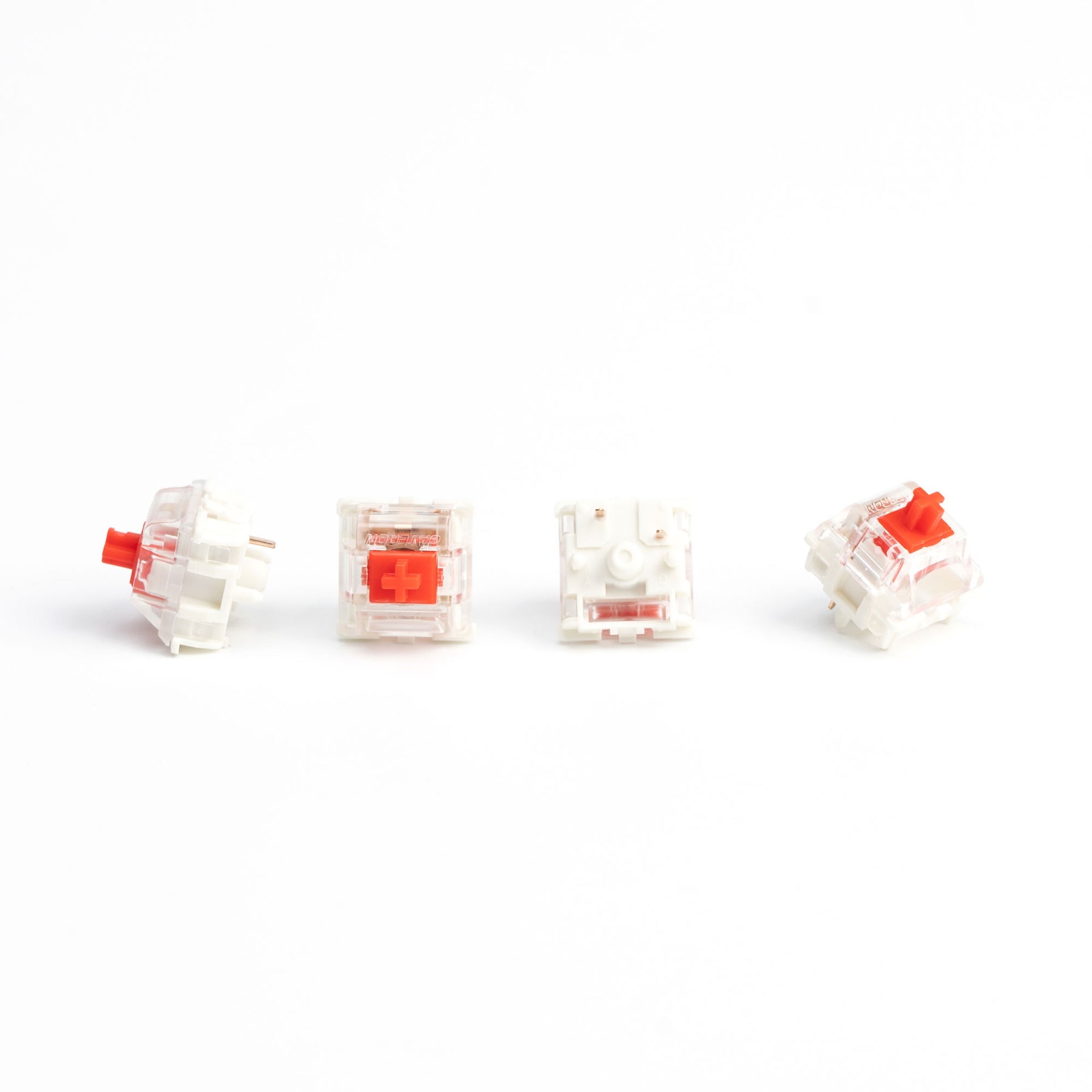

Gateron Jupiter Red Switch
| Type | Linear |
|---|---|
| Operation Force | 45±15 gf |
| Pre-Travel | 2.0±0.6 mm |
| Total Travel | 4.0 mm Max. |
| Operation Life | Up to 80M cycles |
| Finger Strike Feeling | Vertical, light pressing force, soft rebound |

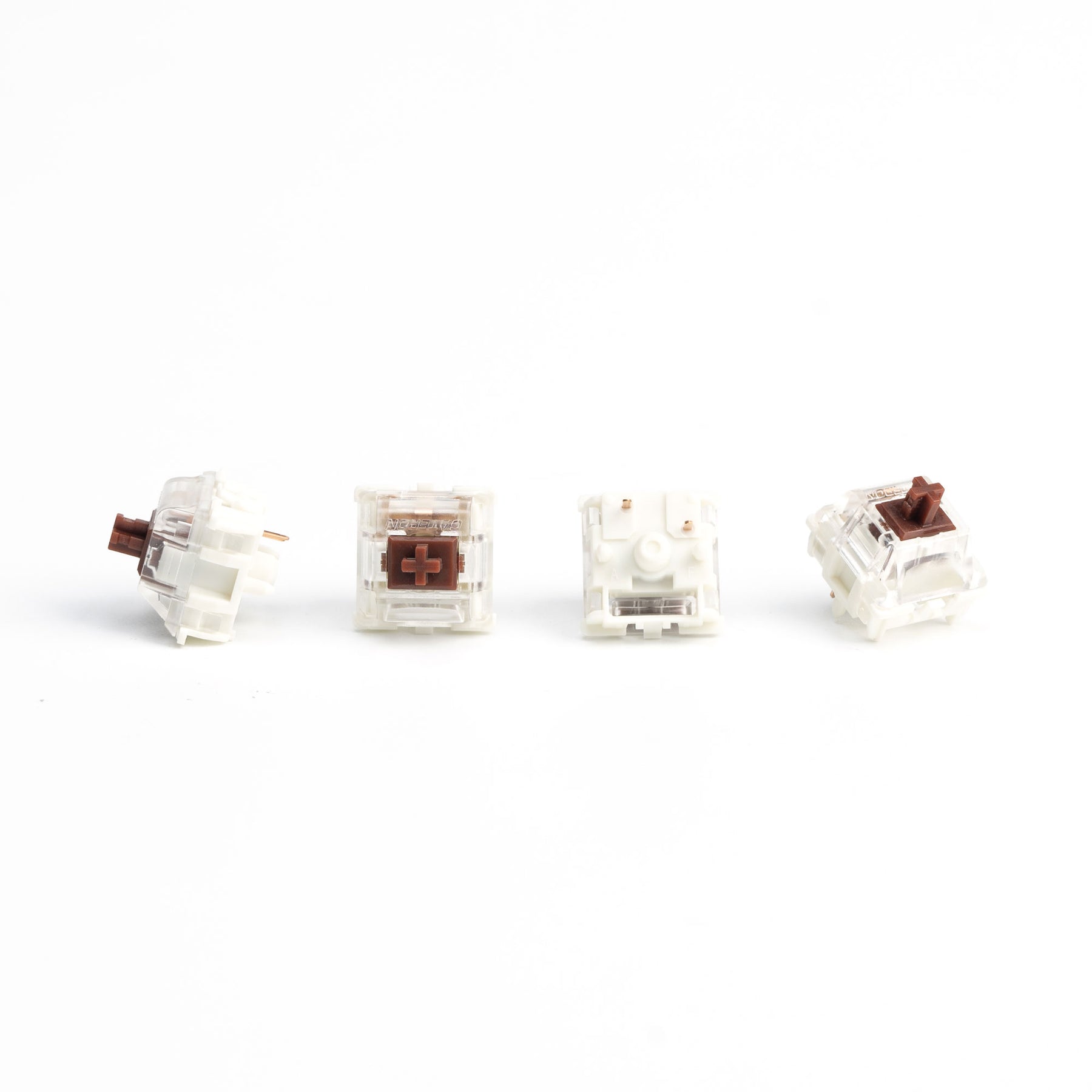

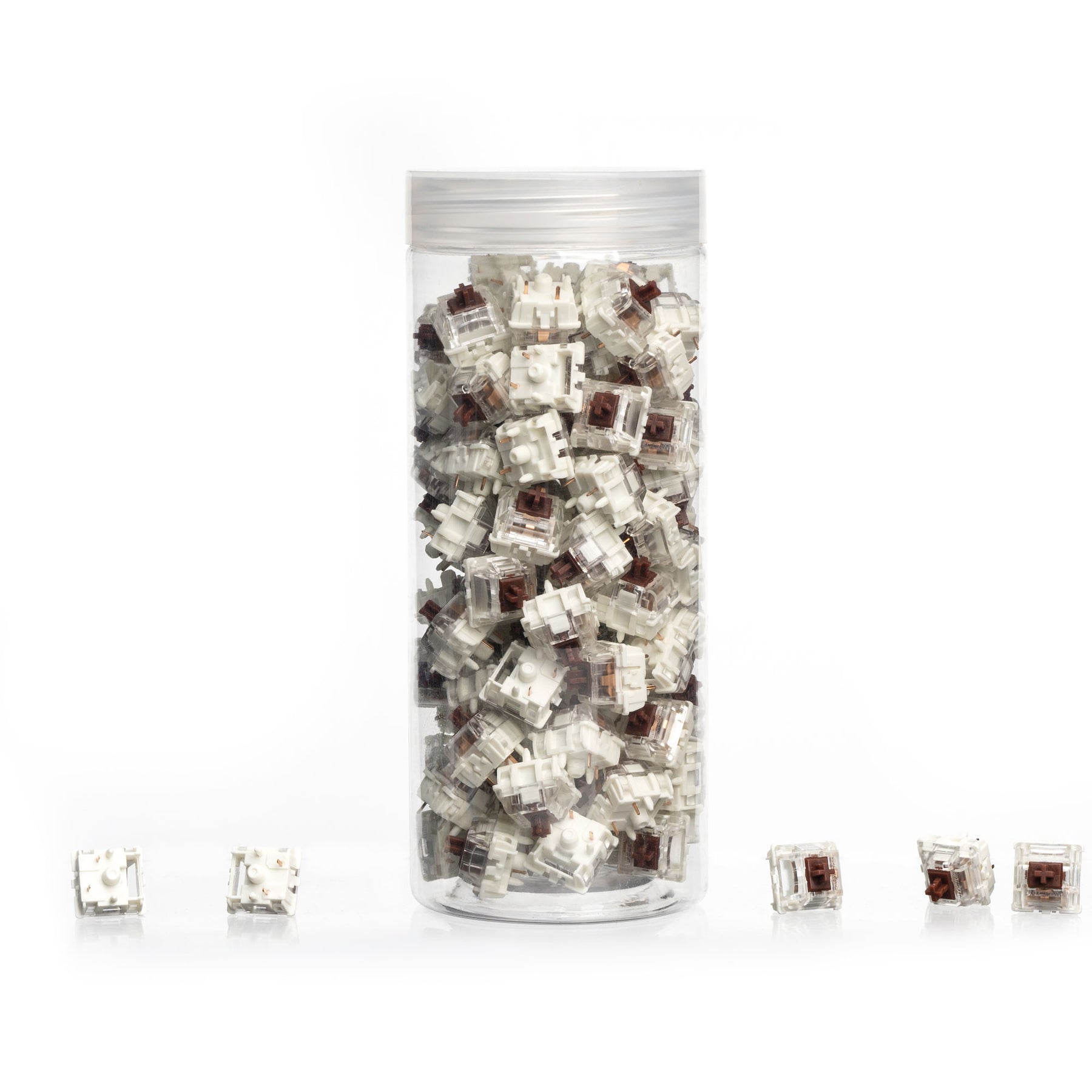

Gateron Jupiter Brown Switch
| Type | Tactile |
|---|---|
| Operation Force | 55±15 gf |
| Pre-Travel | 2.0±0.6 mm |
| Total Travel | 4.0 mm Max. |
| Operation Life | Up to 80M cycles |
| Finger Strike Feeling | Bump, moderate pressing force, clear rebound |

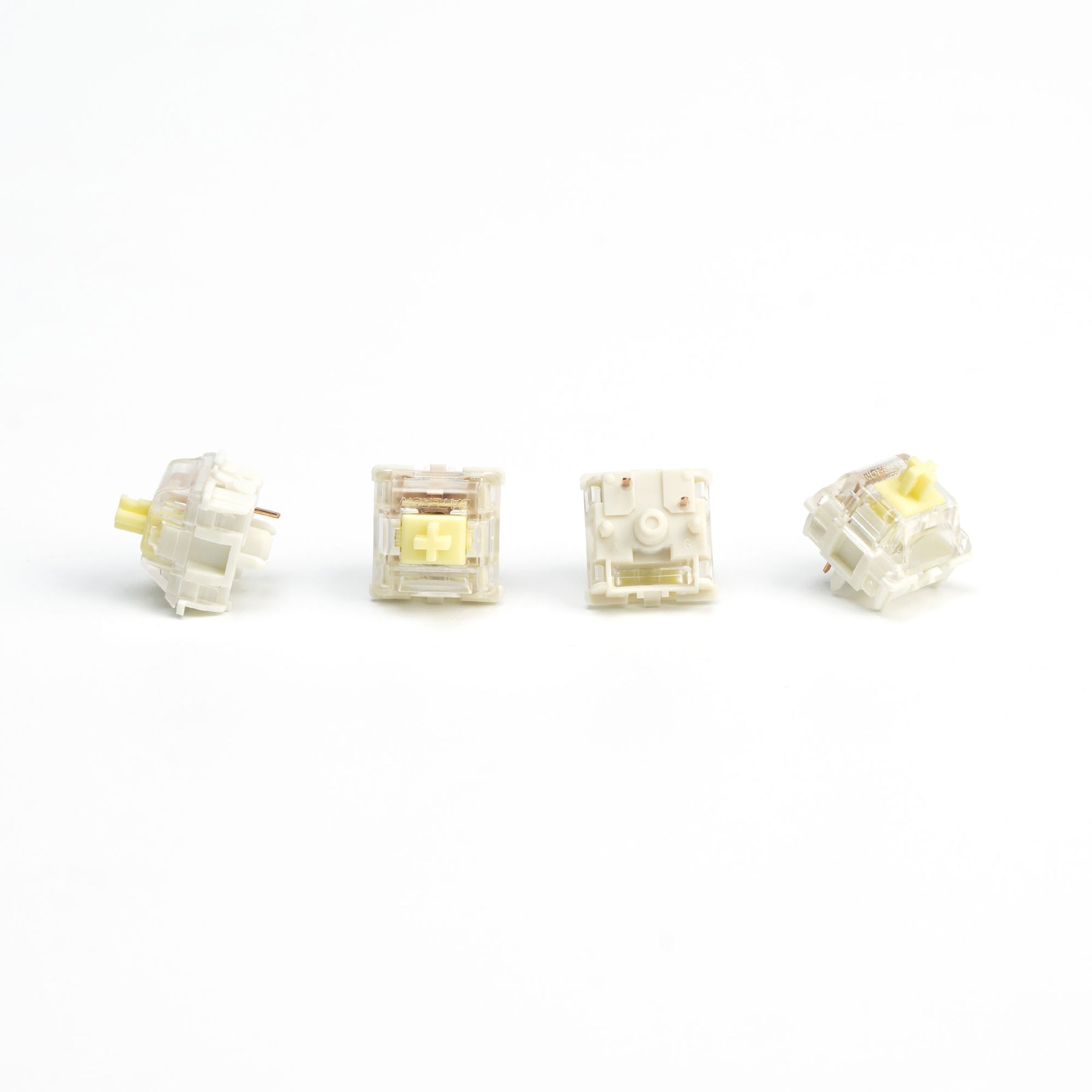

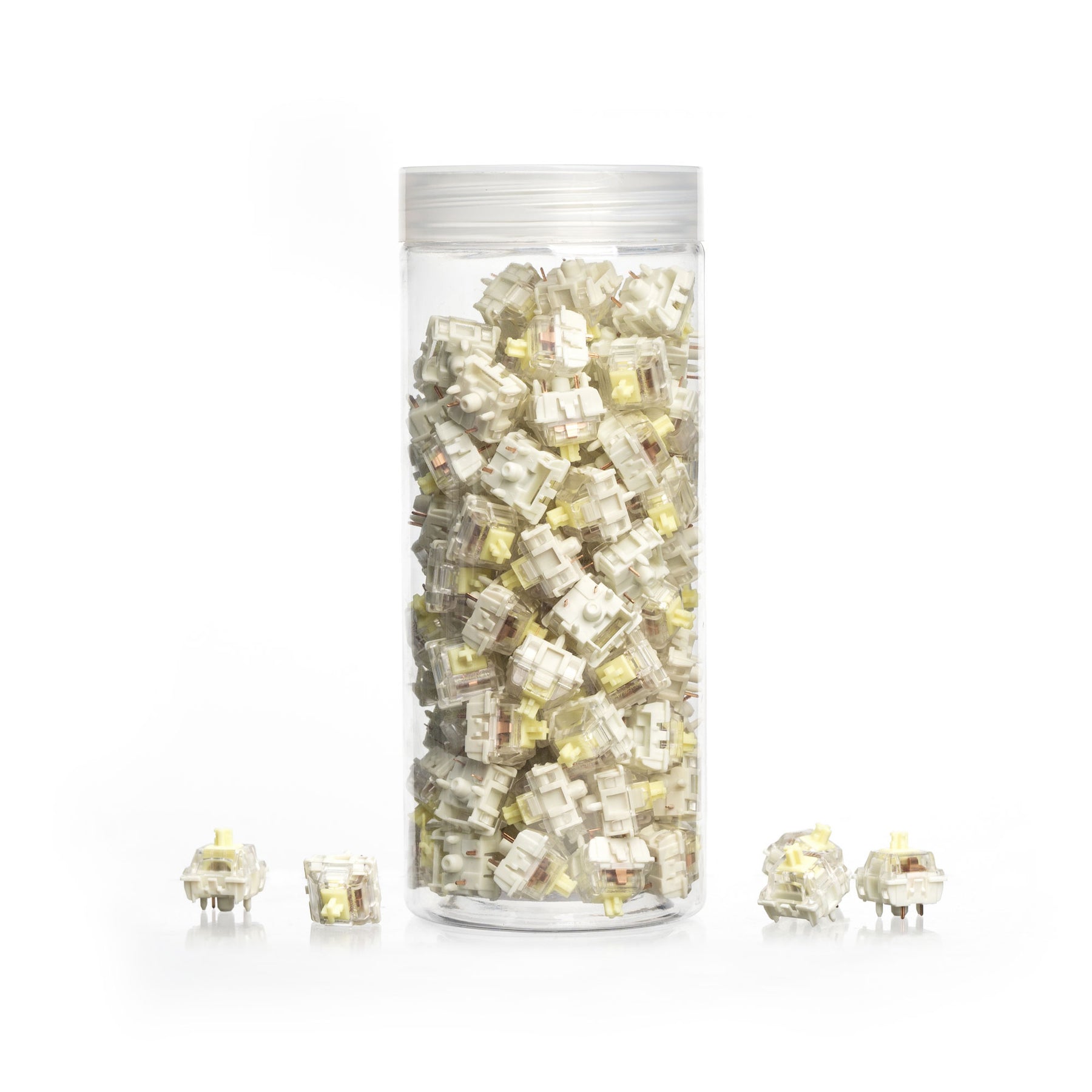

Gateron Jupiter Banana Switch
| Type | Tactile |
|---|---|
| Operation Force | 59±10 gf |
| Pre-Travel | 2.0±0.6 mm |
| Total Travel | 3.4 mm Max. |
| Operation Life | Up to 80M cycles |
| Finger Strike Feeling | Crisp bump, tactile bump at top |
Box Brown Switch
| Type | Tactile |
|---|---|
| Operation Force | 55±10 gf |
| Pre-Travel | 2.0±0.5 mm |
| Total Travel | 4.0 mm Max. |
| Operation Life | Up to 80M cycles |
| Finger Strike Feeling | Bump, moderate pressing force, clear rebound, strong bottom-out feeling |
Specs
| Product Name | Gateron Jupiter Switch |
|---|---|
| Stem | POM, MX stem |
| Upper Housing | PC, transparent housing |
| Housing Base | Nylon, white base |
| Spring | Spring steel |
| Pins | 5-Pin / 3-Pin switch |
| Lubrication | Lubed version |
| SMD LED Support | Yes |
| Spec Sheet | Download PDF |
PS: SMD is an acronym for Surface Mounted Device. Their LEDs are attached to a rectangular printed circuit board (PCB). These LED chips can come in a variety of shapes and sizes that can produce different light intensities and colors.
Compatible Keyboards
Compatible with any 5-Pin MX mechanical keyboard with SMD-LED light or RGB-SMD light.
