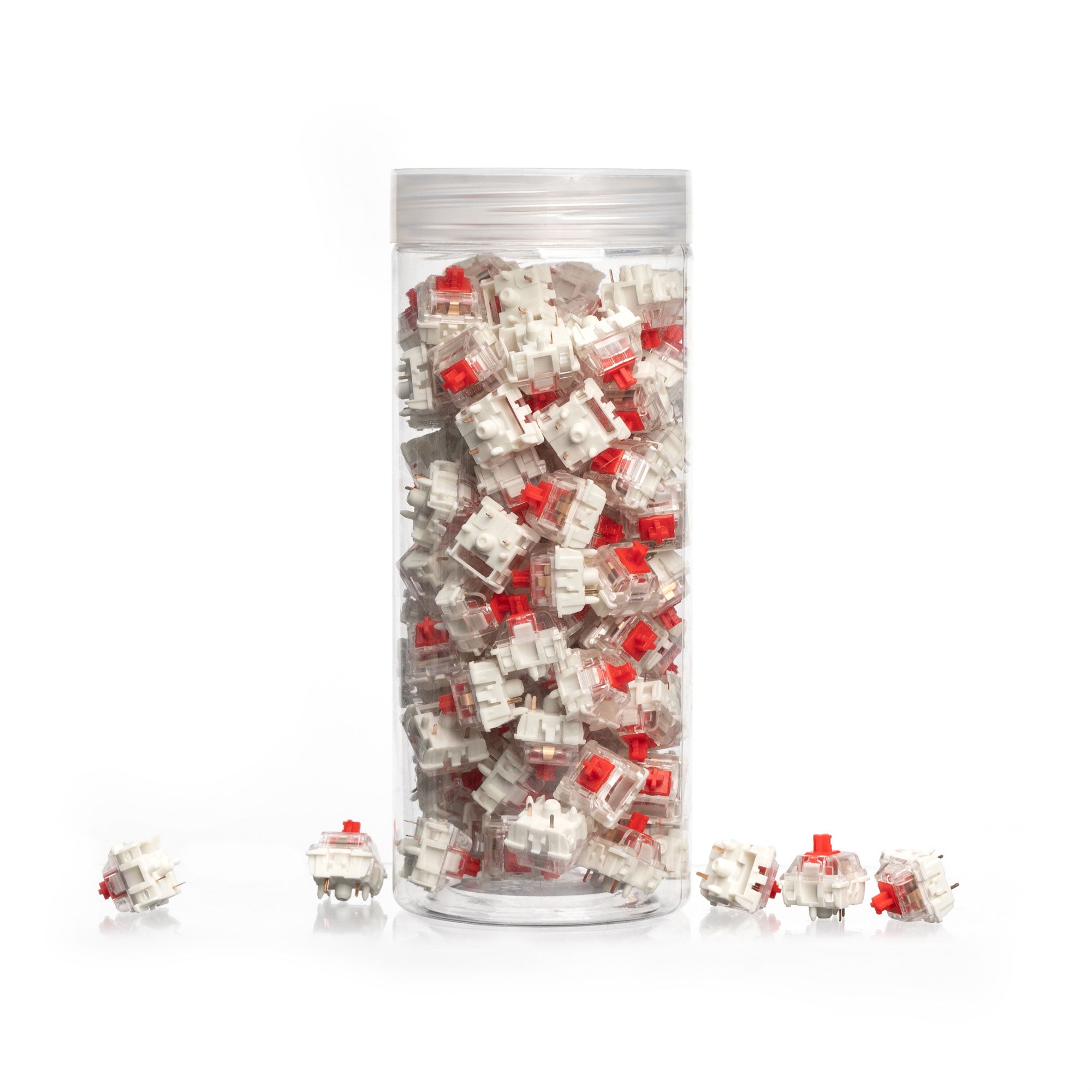

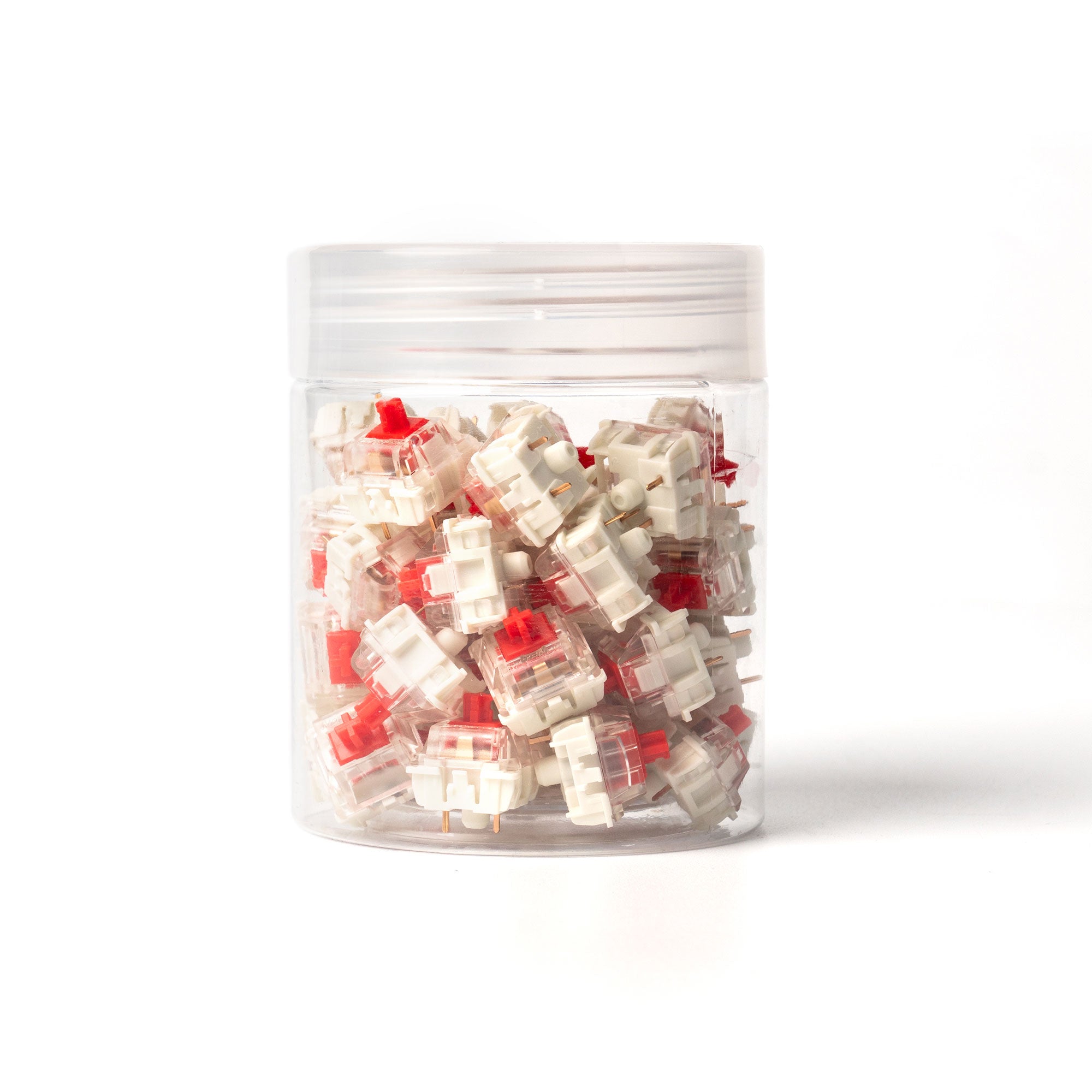

Gateron Jupiter Red Switch Set

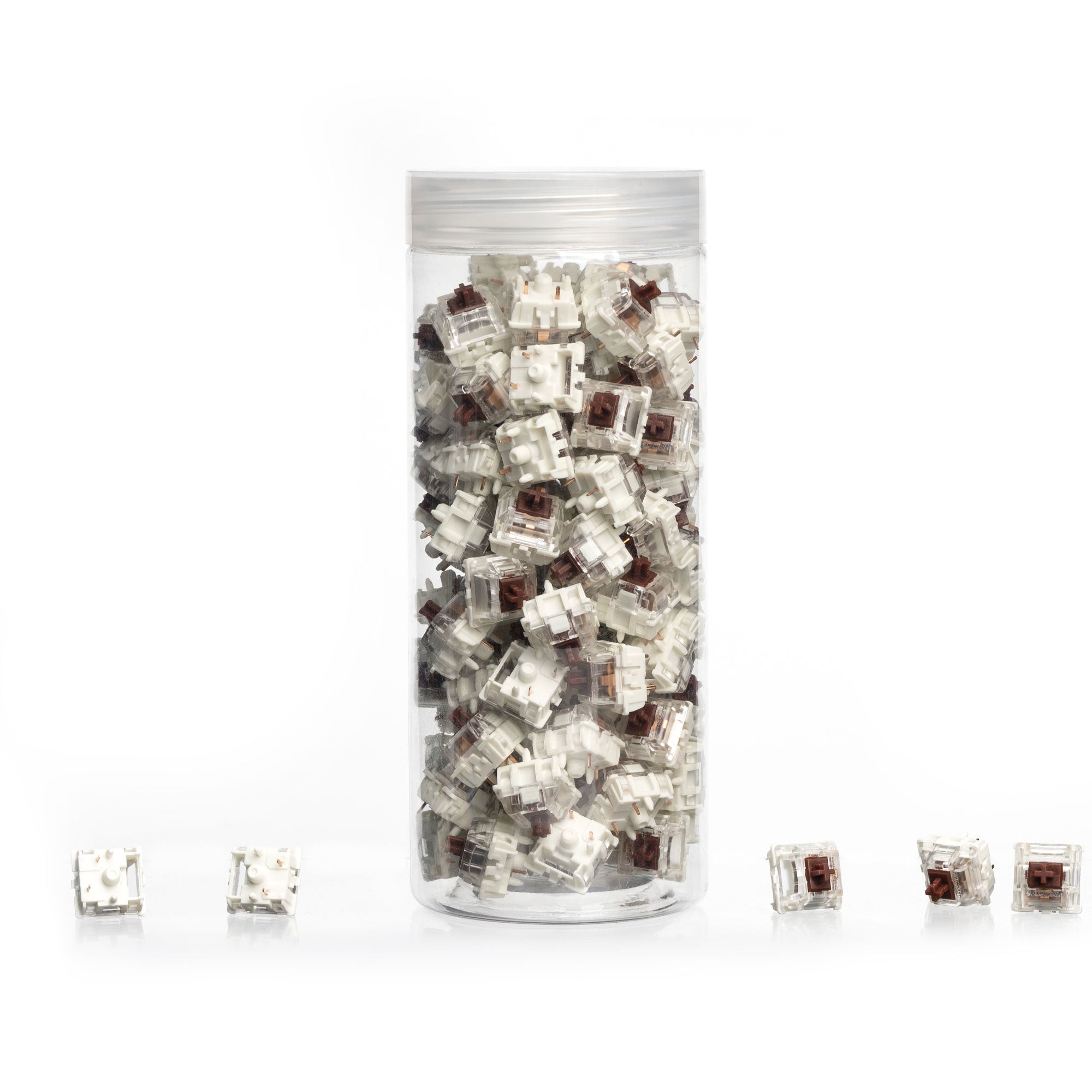

Gateron Jupiter Brown Switch Set

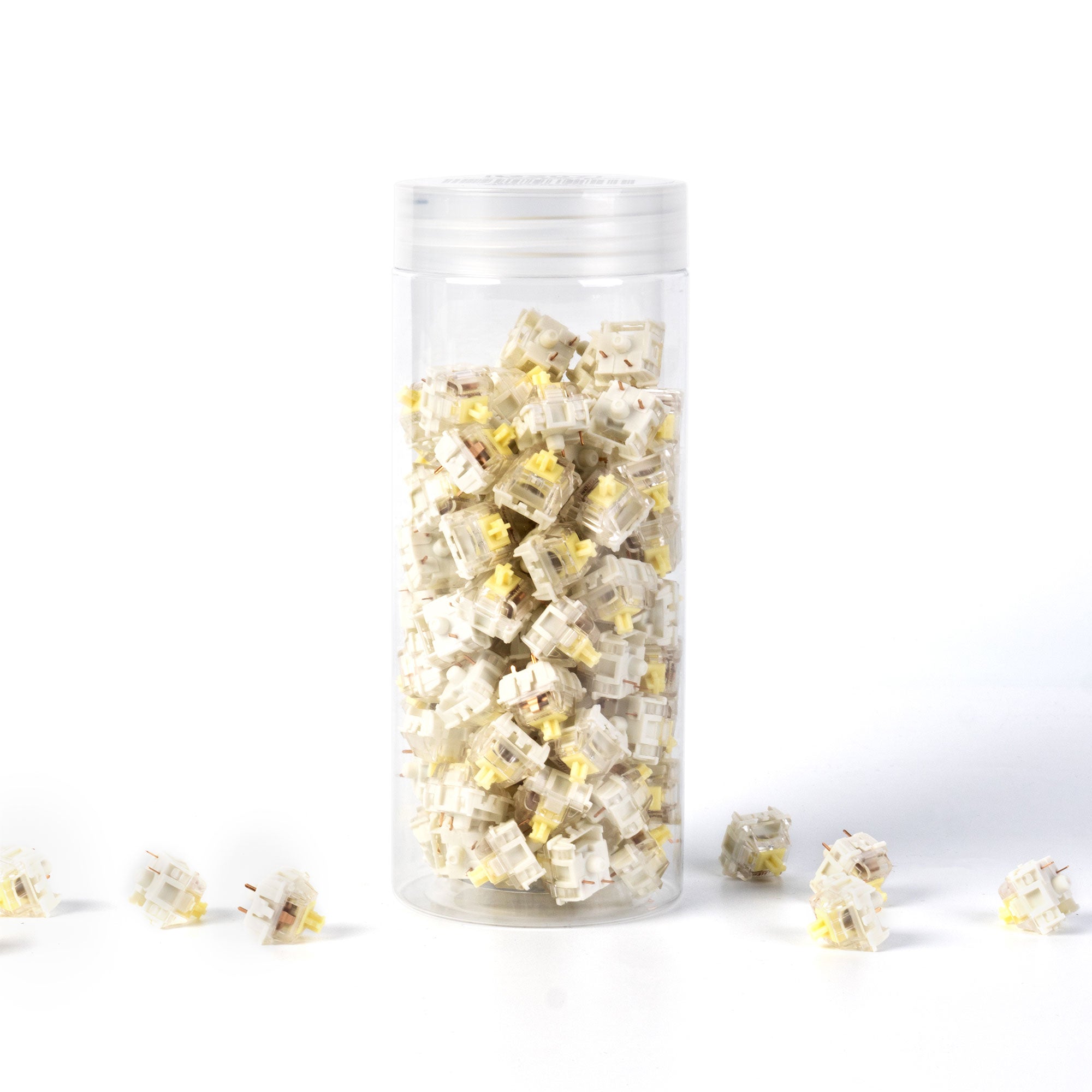

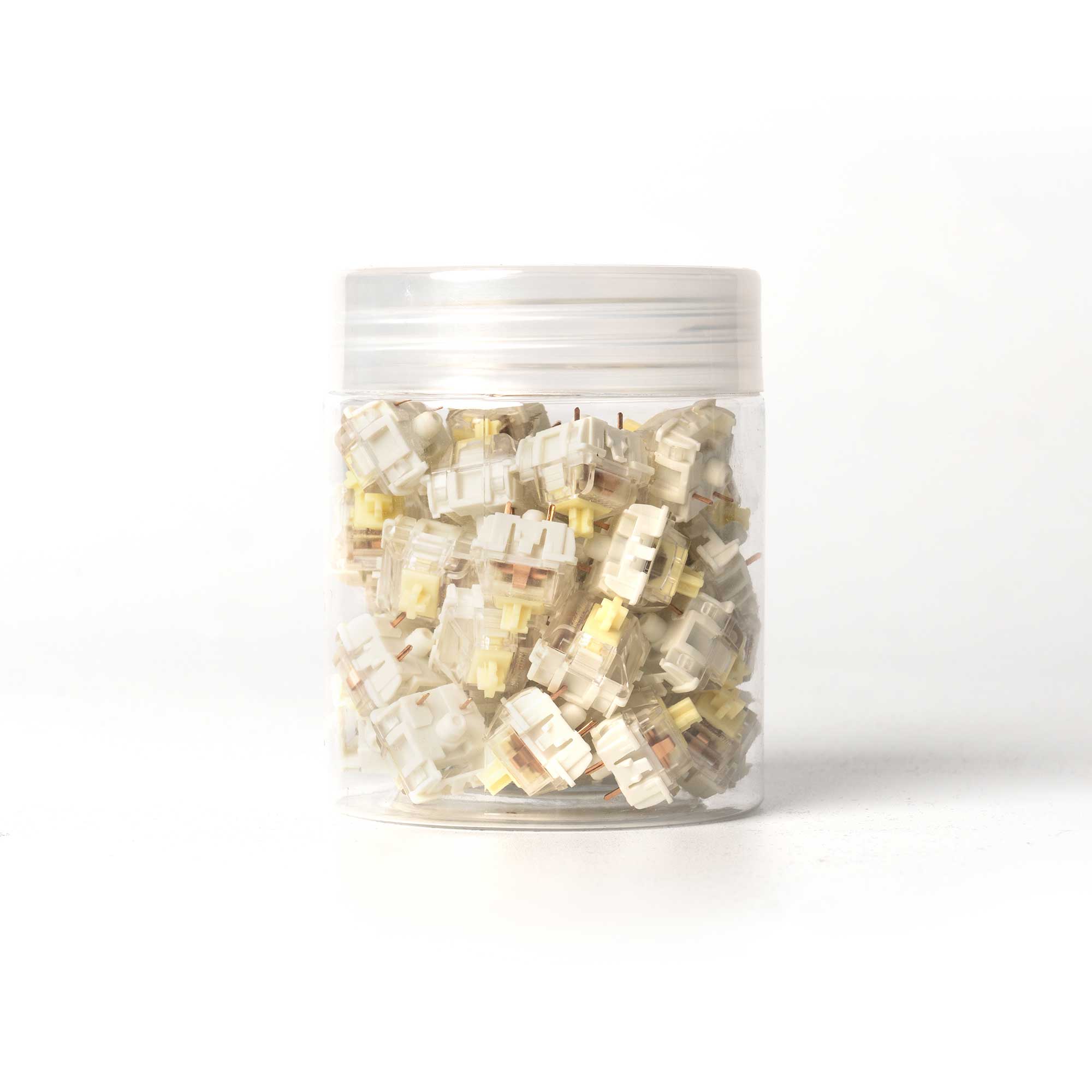

Gateron Jupiter Banana Switch Set - 3 Pin
Gateron Jupiter Switch Set
Gateron Jupiter Banana Switch Set

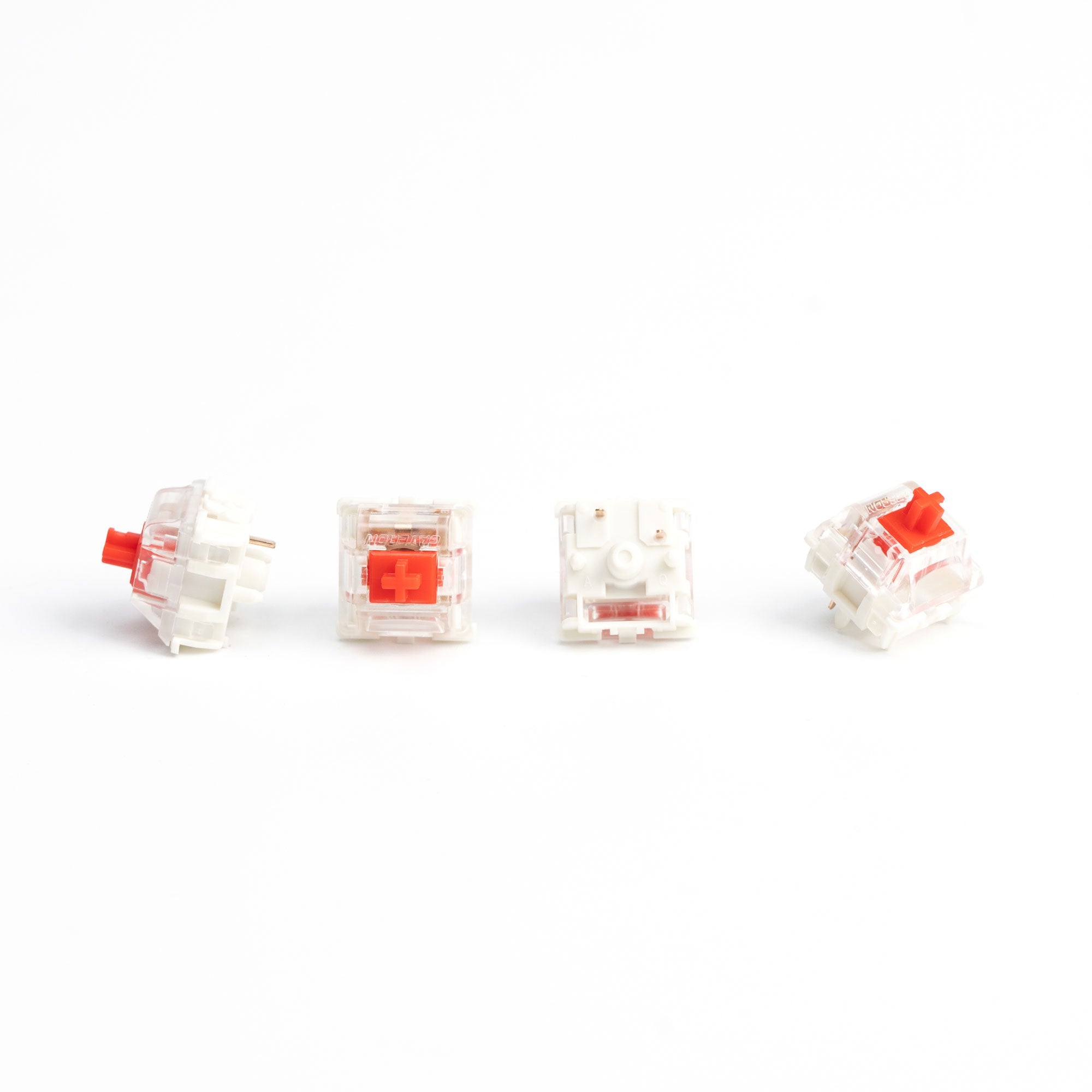

Gateron Jupiter Red Switch

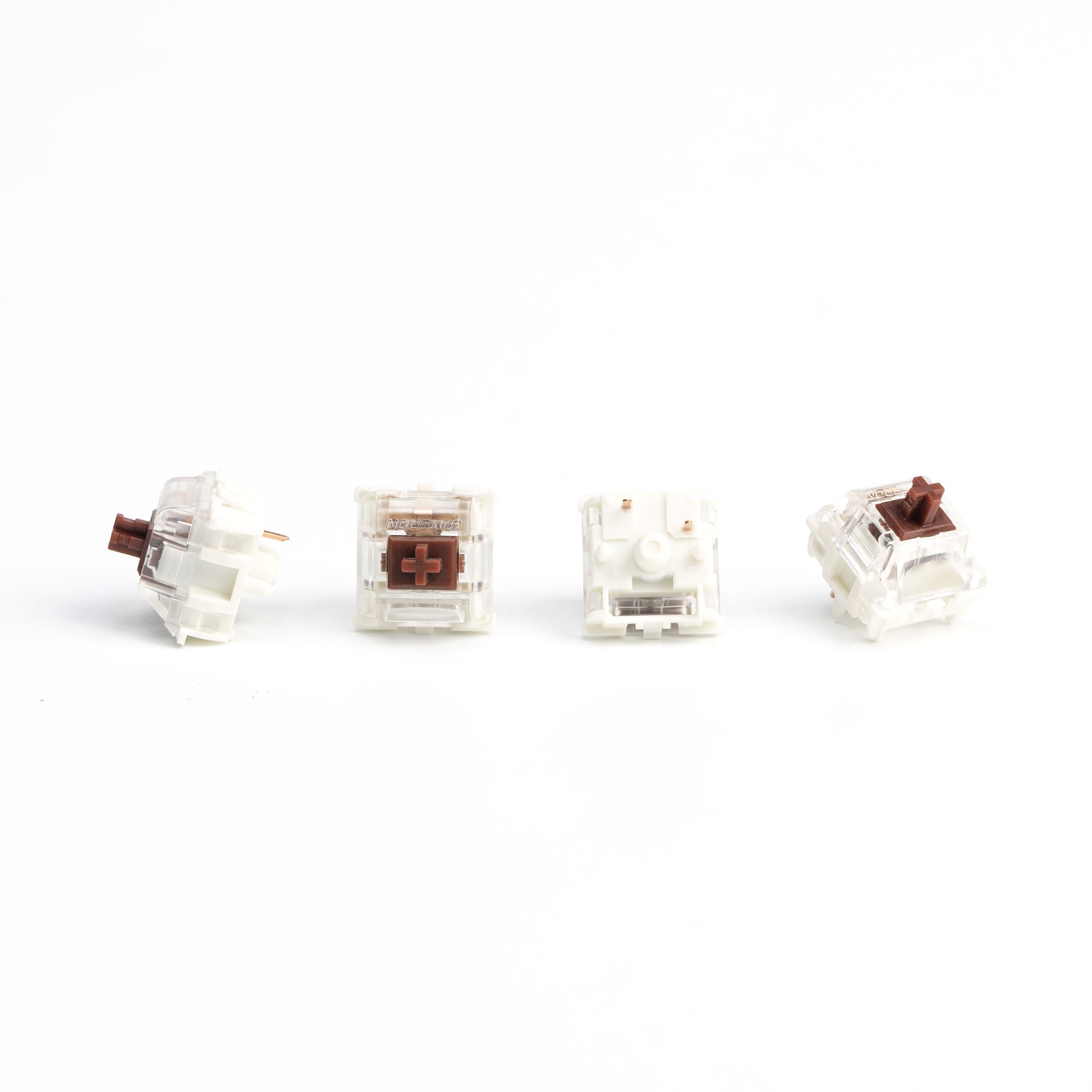

Gateron Jupiter Brown Switch

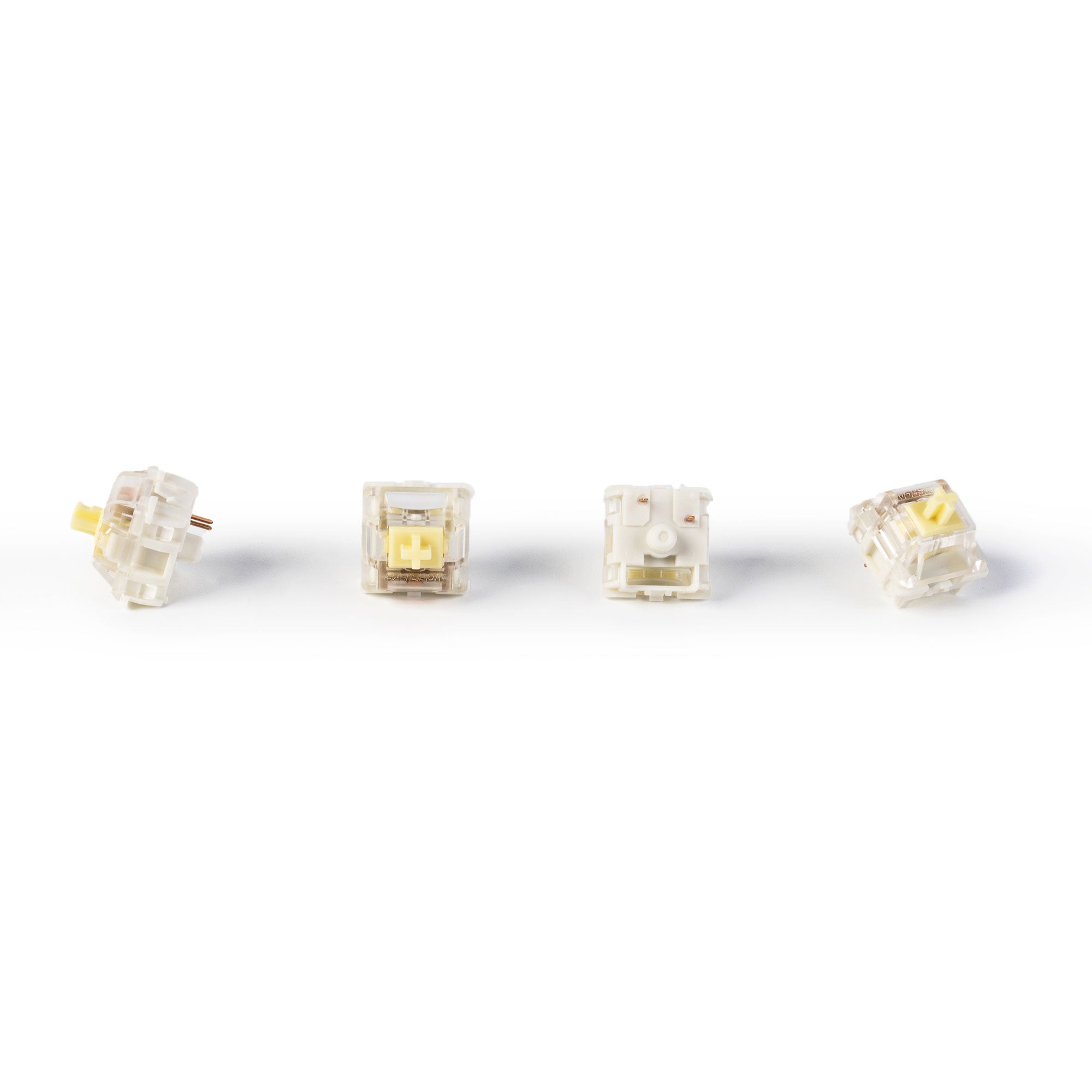

Gateron Jupiter Banana Switch

Gateron Jupiter Switch Set

Sale price$24.80 Regular price$31.00
Option:Banana (Two-Stage Spring)
Quantity of one set:110 Switches
Switch Pin:3 Pin
Quantity:

Gateron Jupiter Banana Switch adopts a two-stage spring.

Please drop your email on "Notify Me When Available" to receive an automated notification via email once the item is in stock.

Gateron Jupiter Switches Features

Different Gateron Jupiter Switches Features

Click here to know more about Gateron switches

Gateron Jupiter Switch

We’re extending the gaming experience, Keychron has teamed up with Gateron to introduce our exclusive Jupiter Switch to the market. Jupiter switches differ from Gateron’s conventional switches with their brand new molds with higher precision and softer backlight effect. Their housing base also has precisely molded nylon and high-quality springs inside to bring a satisfying typing feel.

Gateron Jupiter Switch

Premium Typing Experience

Every detail of the Gateron Jupiter switch is carefully designed to provide near-perfect consistency and smoothness when pressing it. It comes in red, brown, and banana. These custom switches are available in linear and tactile.

Gateron Jupiter Banana switch provides earlier tactile bumps and stronger tactile feedback than a regular brown switch. It features a two-stage spring to provide a stronger return and a more consistent feel.

Inside Gateron Jupiter Switch

Softer Backlight Effect

Compared to regular Gateron switches, the Jupiter switch is crafted with a unique LED diffuser in its transparent housing cover to allow the light to disperse more and softer while maintaining high RGB backlight transmittance for a better backlight effect.

LED Diffuser
Gateron Jupiter Switch Better Backlight Effect
Double-core High-strength 5 pins

Stable 5 Pins

The "Double-Core" robust 5 pins provide better stability and durability for the switch, guaranteeing it can last up to 80 million presses.

Stable 5 Pins

The "Double-Core" robust 5 pins provide better stability and durability for the switch, guaranteeing it can last up to 80 million presses.

Double-core High-strength 5 pins

Factory Pre-Lubed

The Gateron Jupiter switches are pre-lubed in the factory to reduce friction and wear. They also deliver a smoother typing experience.

Gateron Jupiter Brown Switch

Product Information

Gateron Jupiter Red Switch

TypeLinear
Operation Force45±15 gf
Pre-Travel2.0±0.6 mm
Total Travel4.0 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingVertical, light pressing force, soft rebound
Gateron Jupiter Red Switch Force Travel Diagram

Gateron Jupiter Brown Switch

TypeTactile
Operation Force55±15 gf
Pre-Travel2.0±0.6 mm
Total Travel4.0 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingBump, moderate pressing force, clear rebound
Gateron Jupiter Brown Switch Force Travel Diagram

Gateron Jupiter Banana Switch

TypeTactile
Operation Force59±10 gf
Pre-Travel2.0±0.6 mm
Total Travel3.4 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingCrisp bump, tactile bump at top
Gateron Jupiter Banana Switch Force Travel Diagram

Box Brown Switch

TypeTactile
Operation Force55±10 gf
Pre-Travel2.0±0.5 mm
Total Travel4.0 mm Max.
Operation LifeUp to 80M cycles
Finger Strike FeelingBump, moderate pressing force, clear rebound, strong bottom-out feeling
Gateron North Pole Box Brown Switch Force Travel Diagram

Specs

Product NameGateron Jupiter Switch
StemPOM, MX stem
Upper HousingPC, transparent housing
Housing BaseNylon, white base
SpringSpring steel
Pins5-Pin / 3-Pin switch
LubricationLubed version
SMD LED SupportYes
Spec SheetDownload PDF

PS: SMD is an acronym for Surface Mounted Device. Their LEDs are attached to a rectangular printed circuit board (PCB). These LED chips can come in a variety of shapes and sizes that can produce different light intensities and colors.

Compatible Keyboards

Compatible with any 5-Pin MX mechanical keyboard with SMD-LED light or RGB-SMD light.

Gateron Jupiter Switch Layout of PCB

Product Gallery
